Memcached双主模型之repcached
在前边的tomcat session server msm的那篇博客我们用memcached做tomcat session服务器，默认官方memcached是不支持主从同步的，为了解决memcached的高可用，我们是在客户端实现双写和调度，把一份session 多次写入后端的session服务器上，这样使得多台memcached服务器之间的数据有了冗余备份，即便集群中某一台memcached宕机以后，也不会丢失session；在用户访问上，我们在客户端上实现把调度自动切换到没有宕机的memcached上，这样又保证了线上业务的正常使用；memcached 它没有redis那种持久化的特点，它的数据上保存到内存中，一旦服务器掉电，或者重启服务都会导致数据丢失；
memcached单机部署
一、使用yum安装memcached
查看memcached包简介信息
[root@slave01 ~]# yum info memcached Loaded plugins: fastestmirror Repodata is over 2 weeks old. Install yum-cron? Or run: yum makecache fast Loading mirror speeds from cached hostfile * base: mirrors.aliyun.com * extras: mirrors.aliyun.com * updates: mirrors.aliyun.com Available Packages Name : memcached Arch : x86_64 Version : 1.4.15 Release : 10.el7_3.1 Size : 85 k Repo : base/7/x86_64 Summary : High Performance, Distributed Memory Object Cache URL : http://www.memcached.org/ License : BSD Description : memcached is a high-performance, distributed memory object caching : system, generic in nature, but intended for use in speeding up dynamic : web applications by alleviating database load. [root@slave01 ~]#
提示：base仓库收录memcached的版本是1.4.15;
安装memcached
[root@slave01 ~]# yum install -y memcached Loaded plugins: fastestmirror Loading mirror speeds from cached hostfile * base: mirrors.aliyun.com * extras: mirrors.aliyun.com * updates: mirrors.aliyun.com base | 3.6 kB 00:00:00 docker-ce-stable | 3.5 kB 00:00:00 epel | 4.7 kB 00:00:00 extras | 2.9 kB 00:00:00 mariadb | 2.9 kB 00:00:00 updates | 2.9 kB 00:00:00 (1/4): extras/7/x86_64/primary_db | 206 kB 00:00:00 (2/4): updates/7/x86_64/primary_db | 3.8 MB 00:00:00 (3/4): epel/x86_64/primary_db | 6.9 MB 00:00:01 (4/4): epel/x86_64/updateinfo | 1.0 MB 00:00:05 Resolving Dependencies --> Running transaction check ---> Package memcached.x86_64 0:1.4.15-10.el7_3.1 will be installed --> Processing Dependency: libevent-2.0.so.5()(64bit) for package: memcached-1.4.15-10.el7_3.1.x86_64 --> Running transaction check ---> Package libevent.x86_64 0:2.0.21-4.el7 will be installed --> Finished Dependency Resolution Dependencies Resolved ================================================================================================================================== Package Arch Version Repository Size ================================================================================================================================== Installing: memcached x86_64 1.4.15-10.el7_3.1 base 85 k Installing for dependencies: libevent x86_64 2.0.21-4.el7 base 214 k Transaction Summary ================================================================================================================================== Install 1 Package (+1 Dependent package) Total download size: 299 k Installed size: 901 k Downloading packages: (1/2): libevent-2.0.21-4.el7.x86_64.rpm | 214 kB 00:00:00 (2/2): memcached-1.4.15-10.el7_3.1.x86_64.rpm | 85 kB 00:00:00 ---------------------------------------------------------------------------------------------------------------------------------- Total 782 kB/s | 299 kB 00:00:00 Running transaction check Running transaction test Transaction test succeeded Running transaction Installing : libevent-2.0.21-4.el7.x86_64 1/2 Installing : memcached-1.4.15-10.el7_3.1.x86_64 2/2 Verifying : memcached-1.4.15-10.el7_3.1.x86_64 1/2 Verifying : libevent-2.0.21-4.el7.x86_64 2/2 Installed: memcached.x86_64 0:1.4.15-10.el7_3.1 Dependency Installed: libevent.x86_64 0:2.0.21-4.el7 Complete! [root@slave01 ~]#
提示：从上面的安装信息可以看到memcached依赖libevent这个包，原因是Memcache借助了操作系统的 libevent 工具做高效的读写。libevent 是个程序库，它将 Linux 的 epoll、BSD 类操作系统的 kqueue 等事件处理功能封装成统一的接口。即使对服务器的连接数增加，也能发挥高性能。memcached使用这个libevent库，因此能在 Linux、BSD、Solaris 等操作系统上发挥其高性能；
查看memcached程序环境
[root@slave01 ~]# rpm -ql memcached /etc/sysconfig/memcached /usr/bin/memcached /usr/bin/memcached-tool /usr/lib/systemd/system/memcached.service /usr/share/doc/memcached-1.4.15 /usr/share/doc/memcached-1.4.15/AUTHORS /usr/share/doc/memcached-1.4.15/CONTRIBUTORS /usr/share/doc/memcached-1.4.15/COPYING /usr/share/doc/memcached-1.4.15/ChangeLog /usr/share/doc/memcached-1.4.15/NEWS /usr/share/doc/memcached-1.4.15/README.md /usr/share/doc/memcached-1.4.15/protocol.txt /usr/share/doc/memcached-1.4.15/readme.txt /usr/share/doc/memcached-1.4.15/threads.txt /usr/share/man/man1/memcached-tool.1.gz /usr/share/man/man1/memcached.1.gz [root@slave01 ~]#
提示：/etc/sysconfig/memcached这个文件是memcached的配置文件，/usr/bin/memcached是可执行程序；/usr/lib/systemd/system/memcached.service是memcached的unit file文件；
查看配置文件
[root@slave01 ~]# cat /etc/sysconfig/memcached PORT="11211" USER="memcached" MAXCONN="1024" CACHESIZE="64" OPTIONS="" [root@slave01 ~]#
提示：PORT用于指定memcached的监听端口，默认是11211，USER用于指定启动memcached的用户，默认是memcached，MAXCONN用于指定最大连接数，默认1024.CACHESIZE用于指定最大内存，默认是64M，OPTIONS用于指定其他选项的；
查看memcached帮助
[root@slave01 ~]# memcached -h memcached 1.4.15 -p <num> TCP port number to listen on (default: 11211) -U <num> UDP port number to listen on (default: 11211, 0 is off) -s <file> UNIX socket path to listen on (disables network support) -a <mask> access mask for UNIX socket, in octal (default: 0700) -l <addr> interface to listen on (default: INADDR_ANY, all addresses) <addr> may be specified as host:port. If you don't specify a port number, the value you specified with -p or -U is used. You may specify multiple addresses separated by comma or by using -l multiple times -d run as a daemon -r maximize core file limit -u <username> assume identity of <username> (only when run as root) -m <num> max memory to use for items in megabytes (default: 64 MB) -M return error on memory exhausted (rather than removing items) -c <num> max simultaneous connections (default: 1024) -k lock down all paged memory. Note that there is a limit on how much memory you may lock. Trying to allocate more than that would fail, so be sure you set the limit correctly for the user you started the daemon with (not for -u <username> user; under sh this is done with 'ulimit -S -l NUM_KB'). -v verbose (print errors/warnings while in event loop) -vv very verbose (also print client commands/reponses) -vvv extremely verbose (also print internal state transitions) -h print this help and exit -i print memcached and libevent license -P <file> save PID in <file>, only used with -d option -f <factor> chunk size growth factor (default: 1.25) -n <bytes> minimum space allocated for key+value+flags (default: 48) -L Try to use large memory pages (if available). Increasing the memory page size could reduce the number of TLB misses and improve the performance. In order to get large pages from the OS, memcached will allocate the total item-cache in one large chunk. -D <char> Use <char> as the delimiter between key prefixes and IDs. This is used for per-prefix stats reporting. The default is ":" (colon). If this option is specified, stats collection is turned on automatically; if not, then it may be turned on by sending the "stats detail on" command to the server. -t <num> number of threads to use (default: 4) -R Maximum number of requests per event, limits the number of requests process for a given connection to prevent starvation (default: 20) -C Disable use of CAS -b <num> Set the backlog queue limit (default: 1024) -B Binding protocol - one of ascii, binary, or auto (default) -I Override the size of each slab page. Adjusts max item size (default: 1mb, min: 1k, max: 128m) -S Turn on Sasl authentication -o Comma separated list of extended or experimental options - (EXPERIMENTAL) maxconns_fast: immediately close new connections if over maxconns limit - hashpower: An integer multiplier for how large the hash table should be. Can be grown at runtime if not big enough. Set this based on "STAT hash_power_level" before a restart. [root@slave01 ~]#
提示：-P用于指定监听TCP端口，默认11211；-U用于指定监听UDP端口，默认也是11211，如果指定是0表示关闭UDP监听；-s用于指定unix socket文件；-a用于指定unix socket文件的权限，默认是0700的权限；-l用于指定监听的ip地址信息，默认是监听本机所有可用地址；-d 用于指定memcached运行为守护进程；-r用于限定core file的大小；-u用于指定运行memcached的用户名称；-m用于指定分配给memcached使用的内存，单位是MB；-M用于指定内存耗尽时返回错误，而不是删除；-c指定最大连接数，默认数1024；-k用于指定锁定所有分页内存。-v -vv -vvv 打印详细信息，v的数量越多，表示打印的信息就越详细；-h打印帮助信息；-i打印memcached和libevent的license信息；-p用于指定pid文件；-f用于指定chunk 增长因子，默认数1.25；-n用于指定为缓存数据项的key、value、flag设置最小分配字节数，默认是48；-L用于指定尝试使用大内存分页；-D用于指定统计报告中Key前缀和ID之间的分隔符，默认是冒号“:”；-t用于指定处理线程的数量，默认数4；-R用于指定对连续达到的客户端请求数设置一个限额，如果超过该设置，会选择另一个连接来处理请求，默认为20；-C用于指定关闭CAS;-b用户指定backlog队列长度，默认是1024；-B用于指定使用的协议，默认行为是自动协商（autonegotiate），可能使用的选项有auto、ascii、binary。-I用于指定覆盖默认的STAB页大小，默认是1M；-S用于指定打开Sasl身份验证；-o用于指定号分隔的选项，一般用于用于扩展或实验性质的选项；

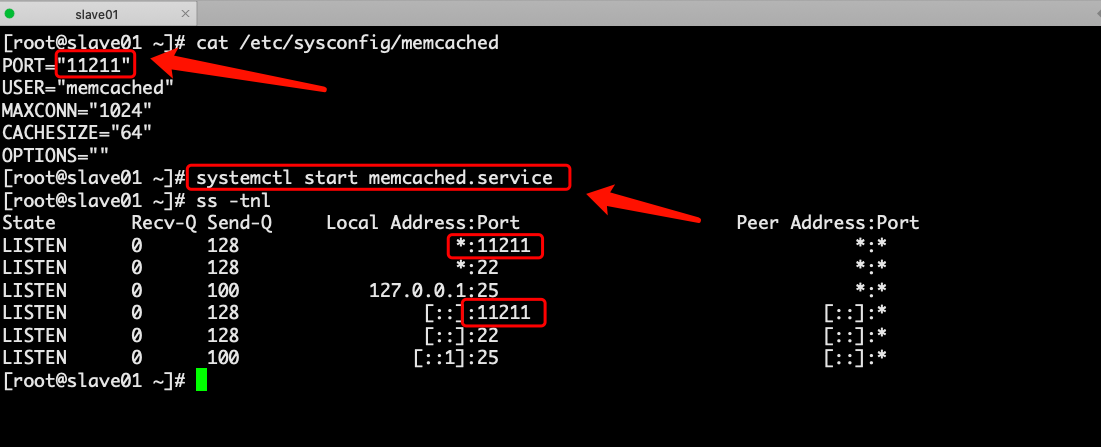

启动memecached
提示：启动memcached可以把启动的选项写到配置文件，然后使用systemctl方式启动，也可以直接在命令行使用memcached命令指定选项启动；
到此，单机memcached就安装启动完成；
二、memcached编译安装
安装编译环境
root@slave01 ~]# yum groupinstall "development tools" -y Loaded plugins: fastestmirror There is no installed groups file. Maybe run: yum groups mark convert (see man yum) Loading mirror speeds from cached hostfile * base: mirrors.aliyun.com * extras: mirrors.aliyun.com * updates: mirrors.aliyun.com Resolving Dependencies --> Running transaction check ---> Package autoconf.noarch 0:2.69-11.el7 will be installed --> Processing Dependency: m4 >= 1.4.14 for package: autoconf-2.69-11.el7.noarch ---> Package automake.noarch 0:1.13.4-3.el7 will be installed --> Processing Dependency: perl(Thread::Queue) for package: automake-1.13.4-3.el7.noarch --> Processing Dependency: perl(TAP::Parser) for package: automake-1.13.4-3.el7.noarch ---> Package bison.x86_64 0:3.0.4-2.el7 will be installed ---> Package byacc.x86_64 0:1.9.20130304-3.el7 will be installed ……省略部分内容…… Installed: autoconf.noarch 0:2.69-11.el7 automake.noarch 0:1.13.4-3.el7 bison.x86_64 0:3.0.4-2.el7 byacc.x86_64 0:1.9.20130304-3.el7 cscope.x86_64 0:15.8-10.el7 ctags.x86_64 0:5.8-13.el7 diffstat.x86_64 0:1.57-4.el7 doxygen.x86_64 1:1.8.5-4.el7 elfutils.x86_64 0:0.176-4.el7 flex.x86_64 0:2.5.37-6.el7 gcc.x86_64 0:4.8.5-39.el7 gcc-c++.x86_64 0:4.8.5-39.el7 gcc-gfortran.x86_64 0:4.8.5-39.el7 git.x86_64 0:1.8.3.1-23.el7_8 indent.x86_64 0:2.2.11-13.el7 intltool.noarch 0:0.50.2-7.el7 libtool.x86_64 0:2.4.2-22.el7_3 patch.x86_64 0:2.7.1-12.el7_7 patchutils.x86_64 0:0.3.3-4.el7 rcs.x86_64 0:5.9.0-7.el7 redhat-rpm-config.noarch 0:9.1.0-88.el7.centos rpm-build.x86_64 0:4.11.3-43.el7 rpm-sign.x86_64 0:4.11.3-43.el7 subversion.x86_64 0:1.7.14-14.el7 swig.x86_64 0:2.0.10-5.el7 systemtap.x86_64 0:4.0-11.el7 Dependency Installed: apr.x86_64 0:1.4.8-5.el7 apr-util.x86_64 0:1.5.2-6.el7 boost-date-time.x86_64 0:1.53.0-28.el7 boost-system.x86_64 0:1.53.0-28.el7 boost-thread.x86_64 0:1.53.0-28.el7 bzip2.x86_64 0:1.0.6-13.el7 cpp.x86_64 0:4.8.5-39.el7 dwz.x86_64 0:0.11-3.el7 dyninst.x86_64 0:9.3.1-3.el7 efivar-libs.x86_64 0:36-12.el7 emacs-filesystem.noarch 1:24.3-23.el7 gdb.x86_64 0:7.6.1-119.el7 gettext-common-devel.noarch 0:0.19.8.1-3.el7 gettext-devel.x86_64 0:0.19.8.1-3.el7 glibc-devel.x86_64 0:2.17-307.el7.1 glibc-headers.x86_64 0:2.17-307.el7.1 gnutls.x86_64 0:3.3.29-9.el7_6 kernel-debug-devel.x86_64 0:3.10.0-1127.18.2.el7 kernel-headers.x86_64 0:3.10.0-1127.18.2.el7 libdwarf.x86_64 0:20130207-4.el7 libgfortran.x86_64 0:4.8.5-39.el7 libmodman.x86_64 0:2.0.1-8.el7 libmpc.x86_64 0:1.0.1-3.el7 libproxy.x86_64 0:0.4.11-11.el7 libquadmath.x86_64 0:4.8.5-39.el7 libquadmath-devel.x86_64 0:4.8.5-39.el7 libstdc++-devel.x86_64 0:4.8.5-39.el7 m4.x86_64 0:1.4.16-10.el7 mokutil.x86_64 0:15-8.el7 mpfr.x86_64 0:3.1.1-4.el7 neon.x86_64 0:0.30.0-4.el7 nettle.x86_64 0:2.7.1-8.el7 pakchois.x86_64 0:0.4-10.el7 perl-Error.noarch 1:0.17020-2.el7 perl-Git.noarch 0:1.8.3.1-23.el7_8 perl-TermReadKey.x86_64 0:2.30-20.el7 perl-Test-Harness.noarch 0:3.28-3.el7 perl-Thread-Queue.noarch 0:3.02-2.el7 perl-XML-Parser.x86_64 0:2.41-10.el7 perl-srpm-macros.noarch 0:1-8.el7 python-srpm-macros.noarch 0:3-32.el7 subversion-libs.x86_64 0:1.7.14-14.el7 systemtap-client.x86_64 0:4.0-11.el7 systemtap-devel.x86_64 0:4.0-11.el7 systemtap-runtime.x86_64 0:4.0-11.el7 trousers.x86_64 0:0.3.14-2.el7 unzip.x86_64 0:6.0-21.el7 zip.x86_64 0:3.0-11.el7 Complete! [root@slave01 ~]#
安装依赖包
[root@slave01 ~]# yum install -y libevent-devel Loaded plugins: fastestmirror Loading mirror speeds from cached hostfile * base: mirrors.aliyun.com * extras: mirrors.aliyun.com * updates: mirrors.aliyun.com Resolving Dependencies --> Running transaction check ---> Package libevent-devel.x86_64 0:2.0.21-4.el7 will be installed --> Finished Dependency Resolution Dependencies Resolved ===================================================================================================== Package Arch Version Repository Size ===================================================================================================== Installing: libevent-devel x86_64 2.0.21-4.el7 base 85 k Transaction Summary ===================================================================================================== Install 1 Package Total download size: 85 k Installed size: 357 k Downloading packages: libevent-devel-2.0.21-4.el7.x86_64.rpm | 85 kB 00:00:00 Running transaction check Running transaction test Transaction test succeeded Running transaction Installing : libevent-devel-2.0.21-4.el7.x86_64 1/1 Verifying : libevent-devel-2.0.21-4.el7.x86_64 1/1 Installed: libevent-devel.x86_64 0:2.0.21-4.el7 Complete! [root@slave01 ~]#
下载源码文件
[root@slave01 ~]# wget http://memcached.org/files/memcached-1.6.6.tar.gz --2020-08-11 10:35:25-- http://memcached.org/files/memcached-1.6.6.tar.gz Resolving memcached.org (memcached.org)... 107.170.231.145 Connecting to memcached.org (memcached.org)|107.170.231.145|:80... connected. HTTP request sent, awaiting response... 200 OK Length: 543661 (531K) [application/octet-stream] Saving to: ‘memcached-1.6.6.tar.gz’ 100%[===========================================================>] 543,661 19.9KB/s in 17s 2020-08-11 10:35:43 (30.5 KB/s) - ‘memcached-1.6.6.tar.gz’ saved [543661/543661] [root@slave01 ~]# ls memcached-1.6.6.tar.gz [root@slave01 ~]#
解压源码包，检查编译环境
[root@slave01 ~]# tar xf memcached-1.6.6.tar.gz [root@slave01 ~]# cd memcached-1.6.6/ [root@slave01 memcached-1.6.6]# ls aclocal.m4 COPYING itoa_ljust.h NEWS stats_prefix.c assoc.c crawler.c jenkins_hash.c openbsd_priv.c stats_prefix.h assoc.h crawler.h jenkins_hash.h protocol_binary.h storage.c authfile.c crc32c.c LICENSE.bipbuffer README.md storage.h authfile.h crc32c.h linux_priv.c restart.c t AUTHORS daemon.c logger.c restart.h testapp.c bipbuffer.c depcomp logger.h sasl_defs.c thread.c bipbuffer.h doc m4 sasl_defs.h timedrun.c cache.c extstore.c Makefile.am scripts tls.c cache.h extstore.h Makefile.in sizes.c tls.h ChangeLog freebsd_priv.c memcached.c slab_automove.c trace.h compile hash.c memcached_dtrace.d slab_automove_extstore.c util.c config.guess hash.h memcached.h slab_automove_extstore.h util.h config.h.in install-sh memcached.spec slab_automove.h version.m4 config.sub items.c missing slabs.c configure items.h murmur3_hash.c slabs.h configure.ac itoa_ljust.c murmur3_hash.h solaris_priv.c [root@slave01 memcached-1.6.6]# ./configure --prefix=/usr/locat/memcached checking build system type... x86_64-pc-linux-gnu checking host system type... x86_64-pc-linux-gnu checking for a BSD-compatible install... /usr/bin/install -c checking whether build environment is sane... yes checking for a thread-safe mkdir -p... /usr/bin/mkdir -p checking for gawk... gawk checking whether make sets $(MAKE)... yes checking whether make supports nested variables... yes ……省略部分内容…… checking for xsltproc... /usr/bin/xsltproc checking that generated files are newer than configure... done configure: creating ./config.status config.status: creating Makefile config.status: creating doc/Makefile config.status: creating config.h config.status: executing depfiles commands [root@slave01 memcached-1.6.6]#
编译安装memcached
[root@slave01 memcached-1.6.6]# make make all-recursive make[1]: Entering directory `/root/memcached-1.6.6' Making all in doc make[2]: Entering directory `/root/memcached-1.6.6/doc' make all-am make[3]: Entering directory `/root/memcached-1.6.6/doc' make[3]: Nothing to be done for `all-am'. make[3]: Leaving directory `/root/memcached-1.6.6/doc' make[2]: Leaving directory `/root/memcached-1.6.6/doc' make[2]: Entering directory `/root/memcached-1.6.6' gcc -std=gnu99 -DHAVE_CONFIG_H -I. -DNDEBUG -g -O2 -pthread -pthread -Wall -Werror -pedantic -Wmissing-prototypes -Wmissing-declarations -Wredundant-decls -MT memcached-memcached.o -MD -MP -MF .deps/memcached-memcached.Tpo -c -o memcached-memcached.o `test -f 'memcached.c' || echo './'`memcached.c mv -f .deps/memcached-memcached.Tpo .deps/memcached-memcached.Po gcc -std=gnu99 -DHAVE_CONFIG_H -I. -DNDEBUG -g -O2 -pthread -pthread -Wall -Werror -pedantic -Wmissing-prototypes -Wmissing-declarations -Wredundant-decls -MT memcached-hash.o -MD -MP -MF .deps/memcached-hash.Tpo -c -o memcached-hash.o `test -f 'hash.c' || echo './'`hash.c mv -f .deps/memcached-hash.Tpo .deps/memcached-hash.Po ……省略部分内容…… gcc -std=gnu99 -DHAVE_CONFIG_H -I. -g -O2 -pthread -pthread -Wall -Werror -pedantic -Wmissing-prototypes -Wmissing-declarations -Wredundant-decls -MT timedrun.o -MD -MP -MF .deps/timedrun.Tpo -c -o timedrun.o timedrun.c mv -f .deps/timedrun.Tpo .deps/timedrun.Po gcc -std=gnu99 -g -O2 -pthread -pthread -Wall -Werror -pedantic -Wmissing-prototypes -Wmissing-declarations -Wredundant-decls -o timedrun timedrun.o -levent make[2]: Leaving directory `/root/memcached-1.6.6' make[1]: Leaving directory `/root/memcached-1.6.6' [root@slave01 memcached-1.6.6]# make install make install-recursive make[1]: Entering directory `/root/memcached-1.6.6' Making install in doc make[2]: Entering directory `/root/memcached-1.6.6/doc' make install-am make[3]: Entering directory `/root/memcached-1.6.6/doc' make[4]: Entering directory `/root/memcached-1.6.6/doc' make[4]: Nothing to be done for `install-exec-am'. /usr/bin/mkdir -p '/usr/locat/memcached/share/man/man1' /usr/bin/install -c -m 644 memcached.1 '/usr/locat/memcached/share/man/man1' make[4]: Leaving directory `/root/memcached-1.6.6/doc' make[3]: Leaving directory `/root/memcached-1.6.6/doc' make[2]: Leaving directory `/root/memcached-1.6.6/doc' make[2]: Entering directory `/root/memcached-1.6.6' make[3]: Entering directory `/root/memcached-1.6.6' /usr/bin/mkdir -p '/usr/locat/memcached/bin' /usr/bin/install -c memcached '/usr/locat/memcached/bin' /usr/bin/mkdir -p '/usr/locat/memcached/include/memcached' /usr/bin/install -c -m 644 protocol_binary.h '/usr/locat/memcached/include/memcached' make[3]: Leaving directory `/root/memcached-1.6.6' make[2]: Leaving directory `/root/memcached-1.6.6' make[1]: Leaving directory `/root/memcached-1.6.6' [root@slave01 memcached-1.6.6]# ll /usr/locat/memcached/ total 0 drwxr-xr-x 2 root root 23 Aug 11 10:39 bin drwxr-xr-x 3 root root 23 Aug 11 10:39 include drwxr-xr-x 3 root root 17 Aug 11 10:39 share [root@slave01 memcached-1.6.6]#

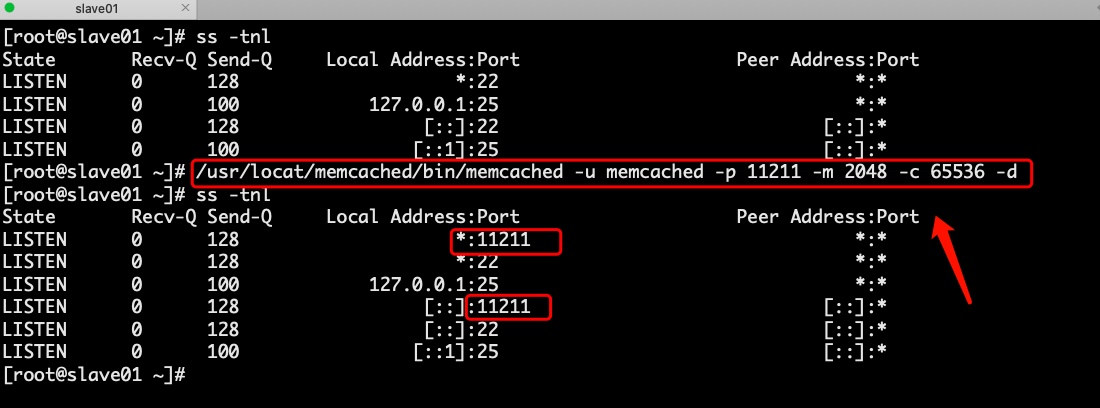

启动memcached
到此memcached的编译安装就完成了
三、使用python连接memcached写入数据
[root@slave01 ~]# cat test.py
import memcache
m = memcache.Client(['127.0.0.1:11211'], debug=True)
for i in range(100):
m.set("key%d" % i,"v%d" % i)
# ret = m.get('key%d' % i)
# print ret
[root@slave01 ~]#
提示：以上脚本主要作用是连接到memcache后循环写入100个key；
运行脚本，然后查看memcached上是否存储的有我们写入的key数据？
[root@slave01 ~]# python test.py [root@slave01 ~]# telnet 127.0.0.1 11211 Trying 127.0.0.1... Connected to 127.0.0.1. Escape character is '^]'. get key1 VALUE key1 0 2 v1 END get k12 END get key12 VALUE key12 0 3 v12 END quit Connection closed by foreign host. [root@slave01 ~]#
提示：可以看到运行脚本以后，连接到memcached里是可以取出我们写入到key对应的数据；
部署 repcached 实验环境说明
| 名称 | IP地址 | 端口 |
| master01 | 192.168.16.196 | 11211 |
| master02 | 192.168.16.197 | 11211 |
在master01上编译安装repcached
[root@master01 ~]# ls memcached-1.2.8-repcached-2.2.tar.gz [root@master01 ~]# tar xf memcached-1.2.8-repcached-2.2.tar.gz [root@master01 ~]# ls memcached-1.2.8-repcached-2.2 memcached-1.2.8-repcached-2.2.tar.gz [root@master01 ~]# cd memcached-1.2.8-repcached-2.2/ [root@master01 memcached-1.2.8-repcached-2.2]# ./configure --prefix=/usr/local/repcached --enable-replication checking build system type... Invalid configuration `x86_64-unknown-linux-': machine `x86_64-unknown-linux' not recognized configure: error: /bin/sh ./config.sub x86_64-unknown-linux- failed [root@master01 memcached-1.2.8-repcached-2.2]#
提示：遇到以上错误，上因为没有安装gcc编译导致的，通常在Linux上做编译操作，我们需要先安装好编译环境；
安装编译环境
[root@master01 memcached-1.2.8-repcached-2.2]# yum groupinstall "development tools" -y
再次检查编译环境
[root@master01 memcached-1.2.8-repcached-2.2]# ./configure --prefix=/usr/local/repcached --enable-replication checking build system type... x86_64-unknown-linux-gnu checking host system type... x86_64-unknown-linux-gnu checking target system type... x86_64-unknown-linux-gnu checking for a BSD-compatible install... /usr/bin/install -c checking whether build environment is sane... yes checking for a thread-safe mkdir -p... /usr/bin/mkdir -p checking for gawk... gawk checking whether make sets $(MAKE)... yes checking for gcc... gcc checking for C compiler default output file name... a.out checking whether the C compiler works... yes checking whether we are cross compiling... no checking for suffix of executables... checking for suffix of object files... o checking whether we are using the GNU C compiler... yes checking whether gcc accepts -g... yes checking for gcc option to accept ISO C89... none needed checking for style of include used by make... GNU checking dependency style of gcc... gcc3 checking whether gcc and cc understand -c and -o together... yes checking for a BSD-compatible install... /usr/bin/install -c checking for libevent directory... configure: error: libevent is required. You can get it from http://www.monkey.org/~provos/libevent/ If it's already installed, specify its path using --with-libevent=/dir/ [root@master01 memcached-1.2.8-repcached-2.2]#
提示：上述错误是没有检查到libevent，解决办法安装依赖包libevent-devel包
安装依赖包
[root@master01 memcached-1.2.8-repcached-2.2]# yum install libevent-devel -y
再次检查编译环境
[root@master01 memcached-1.2.8-repcached-2.2]# ./configure --prefix=/usr/local/repcached --enable-replication checking build system type... x86_64-unknown-linux-gnu checking host system type... x86_64-unknown-linux-gnu checking target system type... x86_64-unknown-linux-gnu checking for a BSD-compatible install... /usr/bin/install -c checking whether build environment is sane... yes checking for a thread-safe mkdir -p... /usr/bin/mkdir -p checking for gawk... gawk checking whether make sets $(MAKE)... yes checking for gcc... gcc checking for C compiler default output file name... a.out checking whether the C compiler works... yes checking whether we are cross compiling... no checking for suffix of executables... checking for suffix of object files... o checking whether we are using the GNU C compiler... yes checking whether gcc accepts -g... yes checking for gcc option to accept ISO C89... none needed checking for style of include used by make... GNU checking dependency style of gcc... gcc3 checking whether gcc and cc understand -c and -o together... yes checking for a BSD-compatible install... /usr/bin/install -c checking for libevent directory... (system) checking for library containing socket... none required checking for library containing gethostbyname... none required checking for library containing mallinfo... none required checking for daemon... yes checking how to run the C preprocessor... gcc -E checking for grep that handles long lines and -e... /usr/bin/grep checking for egrep... /usr/bin/grep -E checking for ANSI C header files... yes checking for sys/types.h... yes checking for sys/stat.h... yes checking for stdlib.h... yes checking for string.h... yes checking for memory.h... yes checking for strings.h... yes checking for inttypes.h... yes checking for stdint.h... yes checking for unistd.h... yes checking for stdbool.h that conforms to C99... yes checking for _Bool... yes checking for an ANSI C-conforming const... yes checking malloc.h usability... yes checking malloc.h presence... yes checking for malloc.h... yes checking for struct mallinfo.arena... yes checking for socklen_t... yes checking for endianness... little checking for mlockall... yes checking for getpagesizes... no checking for memcntl... no configure: creating ./config.status config.status: creating Makefile config.status: creating doc/Makefile config.status: creating config.h config.status: executing depfiles commands [root@master01 memcached-1.2.8-repcached-2.2]#
提示：--enable-replication选项表示开启复制功能；检查编译环境没有问题后，就可以执行编译和安装了；
编译安装
[root@master01 memcached-1.2.8-repcached-2.2]# make && make install make all-recursive make[1]: Entering directory `/root/memcached-1.2.8-repcached-2.2' Making all in doc make[2]: Entering directory `/root/memcached-1.2.8-repcached-2.2/doc' make[2]: Nothing to be done for `all'. make[2]: Leaving directory `/root/memcached-1.2.8-repcached-2.2/doc' make[2]: Entering directory `/root/memcached-1.2.8-repcached-2.2' gcc -DHAVE_CONFIG_H -I. -DNDEBUG -g -O2 -MT memcached-memcached.o -MD -MP -MF .deps/memcached-memcached.Tpo -c -o memcached-memcached.o `test -f 'memcached.c' || echo './'`memcached.c memcached.c: In function ‘add_iov’: memcached.c:696:30: error: ‘IOV_MAX’ undeclared (first use in this function) if (m->msg_iovlen == IOV_MAX || ^ memcached.c:696:30: note: each undeclared identifier is reported only once for each function it appears in make[2]: *** [memcached-memcached.o] Error 1 make[2]: Leaving directory `/root/memcached-1.2.8-repcached-2.2' make[1]: *** [all-recursive] Error 1 make[1]: Leaving directory `/root/memcached-1.2.8-repcached-2.2' make: *** [all] Error 2 [root@master01 memcached-1.2.8-repcached-2.2]#

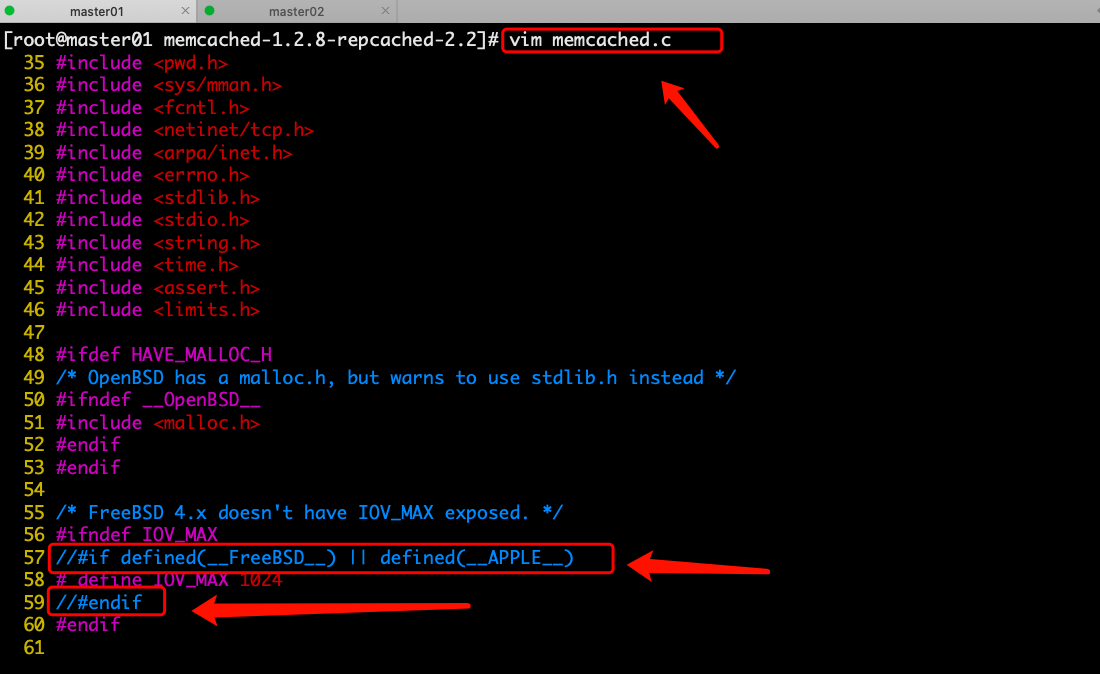

提示：这个错误是memcached.c中的宏定义问题，处理办法就是把memcached.c中的#if defined(__FreeBSD__) || defined(__APPLE__) 和#endif注释掉即可如下所示
提示：修改了上面的memcached.c 以后，再次编译就没有问题了
再次编译
[root@master01 memcached-1.2.8-repcached-2.2]# make && make install make all-recursive make[1]: Entering directory `/root/memcached-1.2.8-repcached-2.2' Making all in doc make[2]: Entering directory `/root/memcached-1.2.8-repcached-2.2/doc' make[2]: Nothing to be done for `all'. make[2]: Leaving directory `/root/memcached-1.2.8-repcached-2.2/doc' make[2]: Entering directory `/root/memcached-1.2.8-repcached-2.2' gcc -DHAVE_CONFIG_H -I. -DNDEBUG -g -O2 -MT memcached-memcached.o -MD -MP -MF .deps/memcached-memcached.Tpo -c -o memcached-memcached.o `test -f 'memcached.c' || echo './'`memcached.c mv -f .deps/memcached-memcached.Tpo .deps/memcached-memcached.Po gcc -DHAVE_CONFIG_H -I. -DNDEBUG -g -O2 -MT memcached-slabs.o -MD -MP -MF .deps/memcached-slabs.Tpo -c -o memcached-slabs.o `test -f 'slabs.c' || echo './'`slabs.c mv -f .deps/memcached-slabs.Tpo .deps/memcached-slabs.Po ……省略部分内容…… mv -f .deps/replication.Tpo .deps/replication.Po gcc -g -O2 -o memcached-debug memcached.o slabs.o items.o assoc.o thread.o stats.o replication.o -levent make[2]: Leaving directory `/root/memcached-1.2.8-repcached-2.2' make[1]: Leaving directory `/root/memcached-1.2.8-repcached-2.2' Making install in doc make[1]: Entering directory `/root/memcached-1.2.8-repcached-2.2/doc' make[2]: Entering directory `/root/memcached-1.2.8-repcached-2.2/doc' make[2]: Nothing to be done for `install-exec-am'. test -z "/usr/local/repcached/share/man/man1" || /usr/bin/mkdir -p "/usr/local/repcached/share/man/man1" /usr/bin/install -c -m 644 './memcached.1' '/usr/local/repcached/share/man/man1/memcached.1' make[2]: Leaving directory `/root/memcached-1.2.8-repcached-2.2/doc' make[1]: Leaving directory `/root/memcached-1.2.8-repcached-2.2/doc' make[1]: Entering directory `/root/memcached-1.2.8-repcached-2.2' make[2]: Entering directory `/root/memcached-1.2.8-repcached-2.2' test -z "/usr/local/repcached/bin" || /usr/bin/mkdir -p "/usr/local/repcached/bin" /usr/bin/install -c 'memcached' '/usr/local/repcached/bin/memcached' /usr/bin/install -c 'memcached-debug' '/usr/local/repcached/bin/memcached-debug' make[2]: Nothing to be done for `install-data-am'. make[2]: Leaving directory `/root/memcached-1.2.8-repcached-2.2' make[1]: Leaving directory `/root/memcached-1.2.8-repcached-2.2' [root@master01 memcached-1.2.8-repcached-2.2]# ll /usr/local/repcached/ total 0 drwxr-xr-x 2 root root 46 Aug 10 23:26 bin drwxr-xr-x 3 root root 17 Aug 10 23:26 share [root@master01 memcached-1.2.8-repcached-2.2]# ll /usr/local/repcached/bin/ total 472 -rwxr-xr-x 1 root root 233096 Aug 10 23:26 memcached -rwxr-xr-x 1 root root 248008 Aug 10 23:26 memcached-debug [root@master01 memcached-1.2.8-repcached-2.2]#
提示：可以看到对应目录下已经有二进制文件生成，到此repcached就编译安装好了；
验证repcached/bin/memcached是否可执行？
[root@master01 ~]# /usr/local/repcached/bin/memcached -h memcached 1.2.8 repcached 2.2 -p <num> TCP port number to listen on (default: 11211) -U <num> UDP port number to listen on (default: 11211, 0 is off) -s <file> unix socket path to listen on (disables network support) -a <mask> access mask for unix socket, in octal (default 0700) -l <ip_addr> interface to listen on, default is INDRR_ANY -d run as a daemon -r maximize core file limit -u <username> assume identity of <username> (only when run as root) -m <num> max memory to use for items in megabytes, default is 64 MB -M return error on memory exhausted (rather than removing items) -c <num> max simultaneous connections, default is 1024 -k lock down all paged memory. Note that there is a limit on how much memory you may lock. Trying to allocate more than that would fail, so be sure you set the limit correctly for the user you started the daemon with (not for -u <username> user; under sh this is done with 'ulimit -S -l NUM_KB'). -v verbose (print errors/warnings while in event loop) -vv very verbose (also print client commands/reponses) -h print this help and exit -i print memcached and libevent license -P <file> save PID in <file>, only used with -d option -f <factor> chunk size growth factor, default 1.25 -n <bytes> minimum space allocated for key+value+flags, default 48 -R Maximum number of requests per event limits the number of requests process for a given con nection to prevent starvation. default 20 -b Set the backlog queue limit (default 1024) -x <ip_addr> hostname or IP address of peer repcached -X <num> TCP port number for replication (default: 11212) [root@master01 ~]#
提示：可以看到在memcached的帮助选项中多了一个-x和-X的选项，其中-x用于指定去那个地址上的memcached同步数据，-X用来指定本地那个端口来接收同步数据；

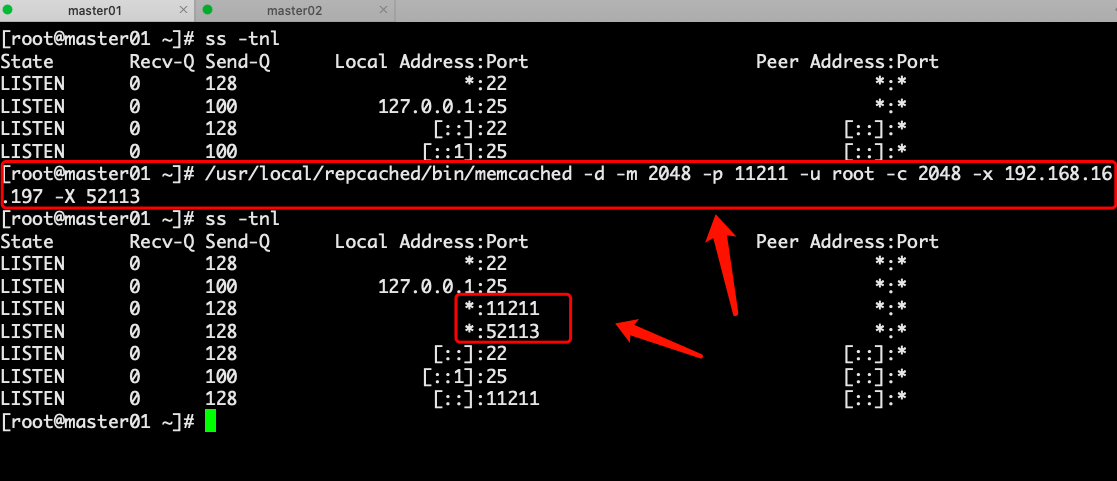

启动memcached
提示：通过 repcached 安装的 memcached 命令启动 memcache 服务并实现 memcache 主备结构，其中-x 为对方即主 memcache 的 IP，-X 为本地启动的用数据同步的端口;
在master02上编译安装repcached的过程同master01上一样的；如果你不想那么麻烦的再去编译可以把master01上编译好的二进制文件拷到master02上执行也是可以的
从master01上拷贝二进制文件到master02上
[root@master01 ~]# scp -r /usr/local/repcached/ master02:/usr/local/ memcached.1 100% 4290 1.9MB/s 00:00 memcached 100% 228KB 4.9MB/s 00:00 memcached-debug 100% 242KB 4.9MB/s 00:00 [root@master01 ~]#
在master02上启动memcached
[root@master02 ~]# /usr/local/repcached/bin/memcached -d -m 2048 -p 11211 -u root -c 2048 -x 192.168.16.196 -X 52113 /usr/local/repcached/bin/memcached: error while loading shared libraries: libevent-2.0.so.5: cannot open shared object file: No such file or directory [root@master02 ~]#
提示：上述报错主要原因上没有安装libevent-devel，所以在执行memcached时加载共享动态库文件找不到，解决办法安装libevent-devel即可
在master02上安装依赖包libevent-devel
[root@master02 ~]# yum install -y libevent-devel

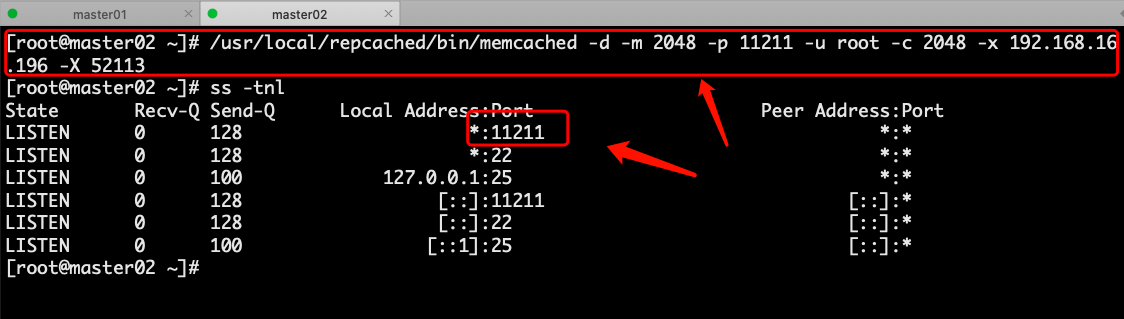

再次启动memcached
提示：在master02上指定master01上的用于复制监听端口，如果master02连接上master01，那么在master02和master01上就不会在监听我们手动指定的用于复制的端口；如果你在master02上还能够看到手动指定的复制端口，说明master01和master02没有建立连接；

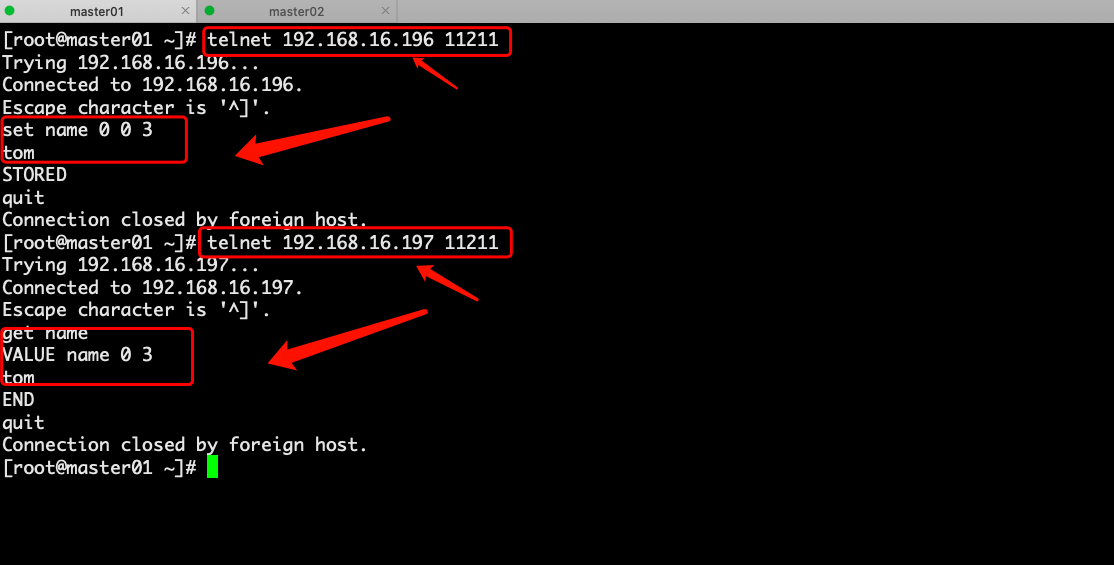

验证：往master01上写入数据看看是否能够同步到master02上呢？
提示：可以看到在master01上写数据，在master02上是能够正常读取到的；

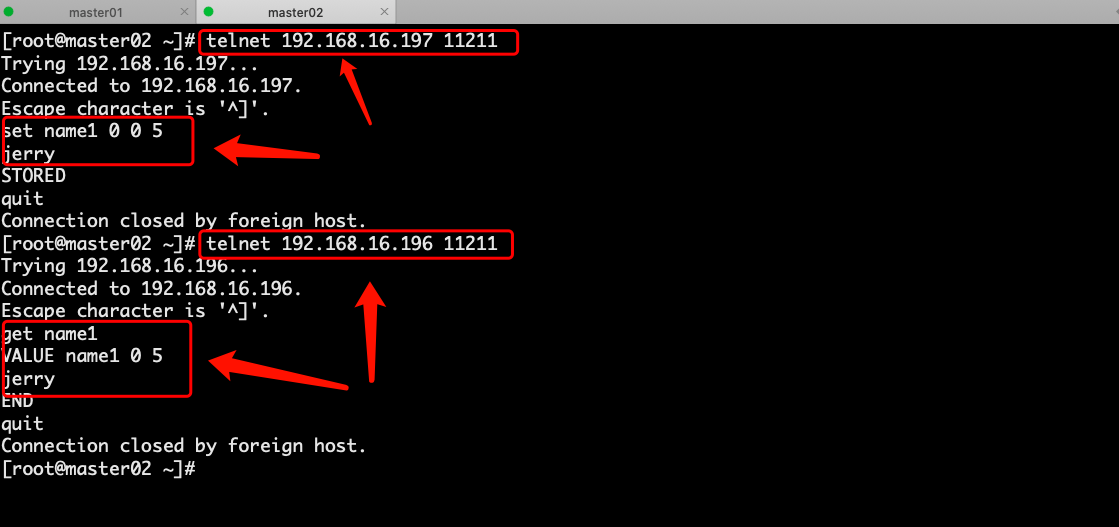

验证在master02上写数据，master01上是否可读取呢？
提示：可以看到在master02上写数据，也能够及时的同步到master01上；到此基于repcached双主模型的memcached就搭建好了，我们不管往那个master上写入数据，它都会立刻同步数据到对方到memcached中去；
