Hadoop3分布式高可用集群部署
文章目录
Hadoop集群部署
一、部署规划
1.1 版本说明
| 软硬件信息 | 参数 |
|---|---|
| 配置 | 2C2G |
| 操作系统版本 | CentOS Linux release 7.7.1908 (Core) |
| java版本 | java version “1.8.0_251” |
| Hadoop版本 | Hadoop 3.3.0 |
1.2 服务器规划
| 服务器 | IP | 角色 |
|---|---|---|
| node1 | 192.168.137.86 | zk、namenode、zkfc、datanode、nodemanager、journalnode |
| node2 | 192.168.137.87 | zk、namenode、zkfc、datanode、nodemanager、resourcemanager、journalnode |
| node3 | 192.168.137.88 | zk、datanode、nodemanager、resourcemanager、journalnode |
1.3 配置目录规划
| 软件 | 目录 |
|---|---|
| hadoop datanode目录 | /data/hadoop/dfs/data |
| hadoop namenode目录 | /data/hadoop/dfs/name |
| hadoop临时目录 | /data/hadoop/tmp |
| zookeeper数据目录 | /data/zookeeper/data/ |
| zookeeper日志目录 | /data/zookeeper/log/ |
二、基本配置
2.1 配置映射
cat>>/etc/hosts <<EOF 192.168.137.86 node1 192.168.137.87 node2 192.168.137.88 node3 EOF
2.2 创建相关用户&目录
groupadd hadoop
useradd -g hadoop hadoop
passwd hadoop
id hadoop
mkdir /data/hadoop/dfs/{data,name} -pv
mkdir /data/hadoop/tmp -pv
chown -R hadoop:hadoop /data/hadoop/2.3 关闭防火墙&selinux
systemctl stop firewalld systemctl disable firewalld setenforce 0 && sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
2.4 配置java环境
安装java
rpm -ivh jdk-8u251-linux-x64.rpm
配置环境变量
cat>>/etc/profile <<EOF JAVA_HOME=/usr/java/jdk1.8.0_251-amd64 PATH=/usr/java/jdk1.8.0_251-amd64:$PATH export PATH EOF source /etc/profile
2.5 配置互信
# 每个节点都执行 ssh-keygen -t rsa # 一路回车 # 将公钥添加到认证文件中 cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys # 并设置authorized_keys的访问权限 chmod 600 ~/.ssh/authorized_keys # 只要在一个节点执行即可 ssh node2 cat ~/.ssh/id_rsa.pub >>~/.ssh/authorized_keys ssh node3 cat ~/.ssh/id_rsa.pub >>~/.ssh/authorized_keys # 分发整合后的文件到其它节点 scp ~/.ssh/authorized_keys node2:~/.ssh/ scp ~/.ssh/authorized_keys node3:~/.ssh/ #各节点执行 ssh node1 date ssh node2 date ssh node3 date
2.6 OS调优
调整swap、内存分配、网络连接参数
cat>>/etc/sysctl.conf <<EOF #避免使用swap vm.swappiness = 1 #修改内存分配策略 vm.overcommit_memory=2 vm.overcommit_ratio=90 #网络连接上限 net.core.somaxcomm=32768 EOF
增大同时打开文件描述符
cat>>/etc/security/limits.conf <<EOF hadoop soft nofile 32768 hadoop hard nofile 65536 hadoop soft nproc 32768 hadoop hard nproc 65536 EOF
选择合适的文件系统，并禁用较长的访问时间
选用ext4文件系统并且指定noatime
关闭THP
cat>>/etc/rc.local <<EOF if test -f /sys/kernel/mm/transparent_hugepage/enabled; then echo never > /sys/kernel/mm/transparent_hugepage/enabled fi if test -f /sys/kernel/mm/transparent_hugepage/defrag; then echo never > /sys/kernel/mm/transparent_hugepage/defrag fi EOF
三、zookeeper部署
3.1 解压安装包并配置环境变量
tar xf apache-zookeeper-3.6.1-bin.tar.gz mv apache-zookeeper-3.6.1-bin /usr/local/zookeeper chown -R hadoop:hadoop /usr/local/zookeeper/ cat>>/etc/profile <<EOF PATH=/usr/local/zookeeper/bin:$PATH export PATH EOF source /etc/profile
3.2 创建数据/日志目录
mkdir -pv /data/zookeeper/{data,log}
chown -R hadoop:hadoop /data/zookeeper/3.3 修改配置文件
su - hadoop cd /usr/local/zookeeper/conf cp zoo_sample.cfg zoo.cfg [hadoop@node1 conf]$ cat zoo.cfg | grep -v "^#" tickTime=2000 initLimit=10 syncLimit=5 dataDir=/data/zookeeper/data/ clientPort=2181 dataLogDir=/data/zookeeper/log/ server.1=node1:2888:3888 server.2=node2:2888:3888 server.3=node3:2888:3888
3.4 创建myid
#各节点配置，根据server.1就是1 echo 1 > /data/zookeeper/data/myid
3.5 启动zk集群
#依次启动各节点 zkServer.sh start #查看集群状态 [hadoop@node1 data]$ zkServer.sh status ZooKeeper JMX enabled by default Using config: /usr/local/zookeeper/bin/../conf/zoo.cfg Client port found: 2181. Client address: localhost. Mode: follower [hadoop@node2 data]$ zkServer.sh status /usr/bin/java ZooKeeper JMX enabled by default Using config: /usr/local/zookeeper/bin/../conf/zoo.cfg Client port found: 2181. Client address: localhost. Mode: leader [hadoop@node3 data]$ zkServer.sh status /usr/bin/java ZooKeeper JMX enabled by default Using config: /usr/local/zookeeper/bin/../conf/zoo.cfg Client port found: 2181. Client address: localhost. Mode: follower
四、hadoop部署
4.1 解压安装包并配置环境变量
tar xf hadoop-3.3.0.tar.gz -C /usr/local/ mv /usr/local/hadoop-3.3.0/ /usr/local/hadoop chown -R hadoop:hadoop /usr/local/hadoop/ cat>>/etc/profile <<EOF HADOOP_HOME=/usr/local/hadoop PATH=/usr/local/hadoop/bin:/usr/local/hadoop/sbin:$PATH export PATH HADOOP_HOME EOF source /etc/profile
4.2 修改核心配置文件
cd $HADOOP_HOME/etc/hadoop
4.2.1 配置 hadoop-env.sh
[root@node1 hadoop]# cat hadoop-env.sh | grep -v '^#' | grep -v "^$"
#添加该行
export JAVA_HOME=/usr/java/jdk1.8.0_251-amd64
export HADOOP_OS_TYPE=${HADOOP_OS_TYPE:-$(uname -s)}4.2.2 配置 core-site.xml
<configuration> <property> <name>fs.defaultFS</name> <value>hdfs://myha01/</value> </property> <property> <name>hadoop.tmp.dir</name> <value>/data/hadoop/tmp</value> <description>namenode上本地的hadoop临时文件夹</description> </property> <property> <name>io.file.buffer.size</name> <value>131072</value> <description>Size of read/write buffer used in SequenceFiles</description> </property> <property> <name>ha.zookeeper.quorum</name> <value>node1:2181,node2:2181,node3:2181</value> <description>指定zookeeper地址</description> </property> <property> <name>ha.zookeeper.session-timeout.ms</name> <value>1000</value> <description>hadoop链接zookeeper的超时时长设置ms</description> </property> </configuration>
4.2.3 配置 hdfs-site.xml
<configuration> <property> <name>dfs.replication</name> <value>3</value> <description>Hadoop的备份系数是指每个block在hadoop集群中有几份，系数越高，冗余性越好，占用存储也越多</description> </property> <property> <name>dfs.namenode.name.dir</name> <value>file:///data/hadoop/dfs/name</value> <description>namenode上存储hdfs名字空间元数据 </description> </property> <property> <name>dfs.datanode.data.dir</name> <value>file:///data/hadoop/dfs/data</value> <description>datanode上数据块的物理存储位置</description> </property> <property> <name>dfs.webhdfs.enabled</name> <value>true</value> </property> <!--指定hdfs的nameservice为myha01，需要和core-site.xml中的保持一致 dfs.ha.namenodes.[nameservice id]为在nameservice中的每一个NameNode设置唯一标示符。 配置一个逗号分隔的NameNode ID列表。这将是被DataNode识别为所有的NameNode。 例如，如果使用"myha01"作为nameservice ID，并且使用"nn1"和"nn2"作为NameNodes标示符 --> <property> <name>dfs.nameservices</name> <value>myha01</value> </property> <!-- myha01下面有两个NameNode，分别是nn1，nn2 --> <property> <name>dfs.ha.namenodes.myha01</name> <value>nn1,nn2</value> </property> <!-- nn1的RPC通信地址 --> <property> <name>dfs.namenode.rpc-address.myha01.nn1</name> <value>node1:9000</value> </property> <!-- nn1的http通信地址 --> <property> <name>dfs.namenode.http-address.myha01.nn1</name> <value>node1:50070</value> </property> <!-- nn2的RPC通信地址 --> <property> <name>dfs.namenode.rpc-address.myha01.nn2</name> <value>node2:9000</value> </property> <!-- nn2的http通信地址 --> <property> <name>dfs.namenode.http-address.myha01.nn2</name> <value>node2:50070</value> </property> <!-- 指定NameNode的edits元数据的共享存储位置。也就是JournalNode列表 该url的配置格式：qjournal://host1:port1;host2:port2;host3:port3/journalId journalId推荐使用nameservice，默认端口号是：8485 --> <property> <name>dfs.namenode.shared.edits.dir</name> <value>qjournal://node1:8485;node2:8485;node3:8485/myha01</value> </property> <!-- 指定JournalNode在本地磁盘存放数据的位置 --> <property> <name>dfs.journalnode.edits.dir</name> <value>/data/hadoop/data/journaldata</value> </property> <!-- 开启NameNode失败自动切换 --> <property> <name>dfs.ha.automatic-failover.enabled</name> <value>true</value> </property> <!-- 配置失败自动切换实现方式 --> <property> <name>dfs.client.failover.proxy.provider.myha01</name> <value>org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider</value> </property> <!-- 配置隔离机制方法，多个机制用换行分割，即每个机制暂用一行 --> <property> <name>dfs.ha.fencing.methods</name> <value> sshfence shell(/bin/true) </value> </property> <!-- 使用sshfence隔离机制时需要ssh免登陆 --> <property> <name>dfs.ha.fencing.ssh.private-key-files</name> <value>/home/hadoop/.ssh/id_rsa</value> </property> <!-- 配置sshfence隔离机制超时时间 --> <property> <name>dfs.ha.fencing.ssh.connect-timeout</name> <value>30000</value> </property> <property> <name>ha.failover-controller.cli-check.rpc-timeout.ms</name> <value>60000</value> </property> </configuration>
4.2.4 配置mapred-site.xml
<configuration> <property> <name>mapreduce.framework.name</name> <value>yarn</value> <description>The runtime framework for executing MapReduce jobs. Can be one of local, classic or yarn.</description> <final>true</final> </property> <property> <name>mapreduce.jobtracker.http.address</name> <value>node1:50030</value> </property> <property> <name>mapreduce.jobhistory.address</name> <value>node1:10020</value> </property> <property> <name>mapreduce.jobhistory.webapp.address</name> <value>node1:19888</value> </property> <property> <name>mapred.job.tracker</name> <value>http://node1:9001</value> </property> </configuration>
4.2.5 配置yarn-site.xml
<configuration> <!-- 开启RM高可用 --> <property> <name>yarn.resourcemanager.ha.enabled</name> <value>true</value> </property> <!-- 指定RM的cluster id --> <property> <name>yarn.resourcemanager.cluster-id</name> <value>yrc</value> </property> <!-- 指定RM的名字 --> <property> <name>yarn.resourcemanager.ha.rm-ids</name> <value>rm1,rm2</value> </property> <!-- 分别指定RM的地址 --> <property> <name>yarn.resourcemanager.hostname.rm1</name> <value>node2</value> </property> <property> <name>yarn.resourcemanager.hostname.rm2</name> <value>node3</value> </property> <!-- 指定zk集群地址 --> <property> <name>yarn.resourcemanager.zk-address</name> <value>node1:2181,node2:2181,node3:2181</value> </property> <property> <name>yarn.nodemanager.aux-services</name> <value>mapreduce_shuffle</value> </property> <property> <name>yarn.log-aggregation-enable</name> <value>true</value> </property> <property> <name>yarn.log-aggregation.retain-seconds</name> <value>86400</value> </property> <!-- 启用自动恢复 --> <property> <name>yarn.resourcemanager.recovery.enabled</name> <value>true</value> </property> <!-- 制定resourcemanager的状态信息存储在zookeeper集群上 --> <property> <name>yarn.resourcemanager.store.class</name> <value>org.apache.hadoop.yarn.server.resourcemanager.recovery.ZKRMStateStore</value> </property> <property> <name>yarn.application.classpath</name> <value>/usr/local/hadoop/etc/hadoop:/usr/local/hadoop/share/hadoop/common/lib/*:/usr/local/hadoop/share/hadoop/common/*:/usr/local/hadoop/share/hadoop/hdfs:/usr/local/hadoop/share/hadoop/hdfs/lib/*:/usr/local/hadoop/share/hadoop/hdfs/*:/usr/local/hadoop/share/hadoop/mapreduce/*:/usr/local/hadoop/share/hadoop/yarn:/usr/local/hadoop/share/hadoop/yarn/lib/*:/usr/local/hadoop/share/hadoop/yarn/*</value> </property> </configuration>
4.2.6 配置workers
[root@node1 hadoop]# cat workers node1 node2 node3
4.2.7 同步目录
scp -r /usr/local/hadoop node2:/usr/local scp -r /usr/local/hadoop node3:/usr/local
4.3 启动hadoop集群
4.3.1 启动journalnode
hadoop-daemon.sh start journalnode
4.3.2 格式化namenode
[hadoop@node1 hadoop]$ hadoop namenode -format WARNING: Use of this script to execute namenode is deprecated. WARNING: Attempting to execute replacement "hdfs namenode" instead. 2020-07-25 00:33:24,537 INFO namenode.NameNode: STARTUP_MSG: /************************************************************ STARTUP_MSG: Starting NameNode STARTUP_MSG: host = node1/192.168.137.86 STARTUP_MSG: args = [-format] STARTUP_MSG: version = 3.3.0 STARTUP_MSG: classpath = /usr/local/hadoop/etc/hadoop:/usr/local/hadoop/share/hadoop/common/lib/zookeeper-jute-3.5.6.jar:/usr/local/hadoop/share/hadoop/common/lib/avro-1.7.7.jar:/usr/local/hadoop/share/hadoop/common/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/common/lib/javax.activation-api-1.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-auth-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-mapper-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-math3-3.1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-pkix-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-webapp-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-servlet-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/htrace-core4-4.1.0-incubating.jar:/usr/local/hadoop/share/hadoop/common/lib/audience-annotations-0.5.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jcip-annotations-1.0-1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-server-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-simplekdc-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/accessors-smart-1.2.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-server-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-annotations-2.10.3.jar:/usr/local/hadoop/share/hadoop/common/lib/jaxb-impl-2.2.3-1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-logging-1.1.3.jar:/usr/local/hadoop/share/hadoop/common/lib/gson-2.2.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jettison-1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-collections-3.2.2.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-beanutils-1.9.4.jar:/usr/local/hadoop/share/hadoop/common/lib/httpclient-4.5.6.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-annotations-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/lib/asm-5.0.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-util-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-xdr-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-core-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-identity-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-security-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/jsch-0.1.55.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-compress-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/curator-framework-4.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-core-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-net-3.6.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-jaxrs-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/metrics-core-3.2.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-json-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/dnsjava-2.1.7.jar:/usr/local/hadoop/share/hadoop/common/lib/curator-recipes-4.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-io-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/guava-27.0-jre.jar:/usr/local/hadoop/share/hadoop/common/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-core-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/curator-client-4.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jsr311-api-1.1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-codec-1.11.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-client-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-xml-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/stax2-api-3.1.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-xc-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/token-provider-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-shaded-protobuf_3_7-1.0.0.jar:/usr/local/hadoop/share/hadoop/common/lib/slf4j-api-1.7.25.jar:/usr/local/hadoop/share/hadoop/common/lib/httpcore-4.4.10.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-configuration2-2.1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/woodstox-core-5.0.3.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-lang3-3.7.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-daemon-1.0.13.jar:/usr/local/hadoop/share/hadoop/common/lib/javax.servlet-api-3.1.0.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-admin-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jaxb-api-2.2.11.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-databind-2.10.3.jar:/usr/local/hadoop/share/hadoop/common/lib/checker-qual-2.5.2.jar:/usr/local/hadoop/share/hadoop/common/lib/j2objc-annotations-1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-common-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-http-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-server-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-asn1-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/json-smart-2.3.jar:/usr/local/hadoop/share/hadoop/common/lib/animal-sniffer-annotations-1.17.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-core-2.10.3.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-cli-1.2.jar:/usr/local/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.25.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-text-1.4.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-config-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/netty-3.10.6.Final.jar:/usr/local/hadoop/share/hadoop/common/lib/jsr305-3.0.2.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-io-2.5.jar:/usr/local/hadoop/share/hadoop/common/lib/re2j-1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/zookeeper-3.5.6.jar:/usr/local/hadoop/share/hadoop/common/lib/failureaccess-1.0.jar:/usr/local/hadoop/share/hadoop/common/lib/nimbus-jose-jwt-7.9.jar:/usr/local/hadoop/share/hadoop/common/lib/jsp-api-2.1.jar:/usr/local/hadoop/share/hadoop/common/lib/snappy-java-1.0.5.jar:/usr/local/hadoop/share/hadoop/common/lib/jul-to-slf4j-1.7.25.jar:/usr/local/hadoop/share/hadoop/common/lib/listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-servlet-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-crypto-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/hadoop-registry-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-nfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-kms-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-common-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs:/usr/local/hadoop/share/hadoop/hdfs/lib/zookeeper-jute-3.5.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/avro-1.7.7.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/javax.activation-api-1.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/hadoop-auth-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-mapper-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-math3-3.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-pkix-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-webapp-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-servlet-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/htrace-core4-4.1.0-incubating.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/audience-annotations-0.5.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jcip-annotations-1.0-1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-server-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-simplekdc-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/accessors-smart-1.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-server-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-annotations-2.10.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jaxb-impl-2.2.3-1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-logging-1.1.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/gson-2.2.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jettison-1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-collections-3.2.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-beanutils-1.9.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/httpclient-4.5.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/hadoop-annotations-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/asm-5.0.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-util-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-xdr-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-util-ajax-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-core-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-identity-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-security-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsch-0.1.55.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-compress-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/curator-framework-4.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-core-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-net-3.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-jaxrs-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-json-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/dnsjava-2.1.7.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/curator-recipes-4.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-io-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/guava-27.0-jre.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/okhttp-2.7.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-core-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/curator-client-4.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsr311-api-1.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/json-simple-1.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-codec-1.11.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/netty-all-4.1.50.Final.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-client-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-xml-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/leveldbjni-all-1.8.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/stax2-api-3.1.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-xc-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/token-provider-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/hadoop-shaded-protobuf_3_7-1.0.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/httpcore-4.4.10.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-configuration2-2.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/woodstox-core-5.0.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-lang3-3.7.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/okio-1.6.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-daemon-1.0.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/javax.servlet-api-3.1.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-admin-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jaxb-api-2.2.11.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-databind-2.10.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/checker-qual-2.5.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/j2objc-annotations-1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-common-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-http-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-server-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-asn1-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/json-smart-2.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/animal-sniffer-annotations-1.17.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-core-2.10.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-cli-1.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-text-1.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-config-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/netty-3.10.6.Final.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsr305-3.0.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-io-2.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/re2j-1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/zookeeper-3.5.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/failureaccess-1.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/nimbus-jose-jwt-7.9.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/snappy-java-1.0.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-servlet-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-crypto-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-nfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-native-client-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-client-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-rbf-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-httpfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-rbf-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-native-client-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-client-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-core-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-shuffle-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-uploader-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-nativetask-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-plugins-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-app-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn:/usr/local/hadoop/share/hadoop/yarn/lib/bcprov-jdk15on-1.60.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-module-jaxb-annotations-2.10.3.jar:/usr/local/hadoop/share/hadoop/yarn/lib/asm-tree-7.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/asm-analysis-7.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-jndi-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-plus-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/swagger-annotations-1.5.4.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-server-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/aopalliance-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/guice-4.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/metrics-core-3.2.4.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jna-5.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/HikariCP-java7-2.4.12.jar:/usr/local/hadoop/share/hadoop/yarn/lib/asm-commons-7.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jline-3.9.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-jaxrs-base-2.10.3.jar:/usr/local/hadoop/share/hadoop/yarn/lib/snakeyaml-1.16.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-client-1.19.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax.websocket-api-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-servlet-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/mssql-jdbc-6.2.1.jre7.jar:/usr/local/hadoop/share/hadoop/yarn/lib/geronimo-jcache_1.0_spec-1.0-alpha-1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-common-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jakarta.xml.bind-api-2.3.2.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-client-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/guice-servlet-4.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/json-io-2.5.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/java-util-1.9.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax.inject-1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jakarta.activation-api-1.2.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax-websocket-server-impl-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-api-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/bcpkix-jdk15on-1.60.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-guice-1.19.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-jaxrs-json-provider-2.10.3.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax-websocket-client-impl-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/ehcache-3.3.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-client-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/objenesis-2.6.jar:/usr/local/hadoop/share/hadoop/yarn/lib/fst-2.50.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-annotations-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax.websocket-client-api-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-tests-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-services-api-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-web-proxy-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-api-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-client-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-applicationhistoryservice-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-services-core-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-mawo-core-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-sharedcachemanager-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-registry-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-timeline-pluginstorage-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-router-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-distributedshell-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-nodemanager-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-unmanaged-am-launcher-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-resourcemanager-3.3.0.jar STARTUP_MSG: build = https://gitbox.apache.org/repos/asf/hadoop.git -r aa96f1871bfd858f9bac59cf2a81ec470da649af; compiled by 'brahma' on 2020-07-06T18:44Z STARTUP_MSG: java = 1.8.0_251 ************************************************************/ 2020-07-25 00:33:24,555 INFO namenode.NameNode: registered UNIX signal handlers for [TERM, HUP, INT] 2020-07-25 00:33:24,801 INFO namenode.NameNode: createNameNode [-format] 2020-07-25 00:33:25,806 INFO namenode.NameNode: Formatting using clusterid: CID-68eb373f-712d-4711-b2fa-169ad2f1f9d0 2020-07-25 00:33:26,056 INFO namenode.FSEditLog: Edit logging is async:true 2020-07-25 00:33:26,089 INFO namenode.FSNamesystem: KeyProvider: null 2020-07-25 00:33:26,091 INFO namenode.FSNamesystem: fsLock is fair: true 2020-07-25 00:33:26,091 INFO namenode.FSNamesystem: Detailed lock hold time metrics enabled: false 2020-07-25 00:33:26,104 INFO namenode.FSNamesystem: fsOwner = hadoop (auth:SIMPLE) 2020-07-25 00:33:26,104 INFO namenode.FSNamesystem: supergroup = supergroup 2020-07-25 00:33:26,104 INFO namenode.FSNamesystem: isPermissionEnabled = true 2020-07-25 00:33:26,104 INFO namenode.FSNamesystem: isStoragePolicyEnabled = true 2020-07-25 00:33:26,104 INFO namenode.FSNamesystem: Determined nameservice ID: myha01 2020-07-25 00:33:26,104 INFO namenode.FSNamesystem: HA Enabled: true 2020-07-25 00:33:26,156 INFO common.Util: dfs.datanode.fileio.profiling.sampling.percentage set to 0. Disabling file IO profiling 2020-07-25 00:33:26,167 INFO blockmanagement.DatanodeManager: dfs.block.invalidate.limit: configured=1000, counted=60, effected=1000 2020-07-25 00:33:26,167 INFO blockmanagement.DatanodeManager: dfs.namenode.datanode.registration.ip-hostname-check=true 2020-07-25 00:33:26,171 INFO blockmanagement.BlockManager: dfs.namenode.startup.delay.block.deletion.sec is set to 000:00:00:00.000 2020-07-25 00:33:26,172 INFO blockmanagement.BlockManager: The block deletion will start around 2020 七月 25 00:33:26 2020-07-25 00:33:26,173 INFO util.GSet: Computing capacity for map BlocksMap 2020-07-25 00:33:26,173 INFO util.GSet: VM type = 64-bit 2020-07-25 00:33:26,193 INFO util.GSet: 2.0% max memory 405.5 MB = 8.1 MB 2020-07-25 00:33:26,193 INFO util.GSet: capacity = 2^20 = 1048576 entries 2020-07-25 00:33:26,203 INFO blockmanagement.BlockManager: Storage policy satisfier is disabled 2020-07-25 00:33:26,203 INFO blockmanagement.BlockManager: dfs.block.access.token.enable = false 2020-07-25 00:33:26,211 INFO blockmanagement.BlockManagerSafeMode: dfs.namenode.safemode.threshold-pct = 0.999 2020-07-25 00:33:26,211 INFO blockmanagement.BlockManagerSafeMode: dfs.namenode.safemode.min.datanodes = 0 2020-07-25 00:33:26,212 INFO blockmanagement.BlockManagerSafeMode: dfs.namenode.safemode.extension = 30000 2020-07-25 00:33:26,212 INFO blockmanagement.BlockManager: defaultReplication = 3 2020-07-25 00:33:26,212 INFO blockmanagement.BlockManager: maxReplication = 512 2020-07-25 00:33:26,212 INFO blockmanagement.BlockManager: minReplication = 1 2020-07-25 00:33:26,212 INFO blockmanagement.BlockManager: maxReplicationStreams = 2 2020-07-25 00:33:26,212 INFO blockmanagement.BlockManager: redundancyRecheckInterval = 3000ms 2020-07-25 00:33:26,212 INFO blockmanagement.BlockManager: encryptDataTransfer = false 2020-07-25 00:33:26,212 INFO blockmanagement.BlockManager: maxNumBlocksToLog = 1000 2020-07-25 00:33:26,410 INFO namenode.FSDirectory: GLOBAL serial map: bits=29 maxEntries=536870911 2020-07-25 00:33:26,410 INFO namenode.FSDirectory: USER serial map: bits=24 maxEntries=16777215 2020-07-25 00:33:26,410 INFO namenode.FSDirectory: GROUP serial map: bits=24 maxEntries=16777215 2020-07-25 00:33:26,410 INFO namenode.FSDirectory: XATTR serial map: bits=24 maxEntries=16777215 2020-07-25 00:33:26,457 INFO util.GSet: Computing capacity for map INodeMap 2020-07-25 00:33:26,457 INFO util.GSet: VM type = 64-bit 2020-07-25 00:33:26,457 INFO util.GSet: 1.0% max memory 405.5 MB = 4.1 MB 2020-07-25 00:33:26,457 INFO util.GSet: capacity = 2^19 = 524288 entries 2020-07-25 00:33:26,458 INFO namenode.FSDirectory: ACLs enabled? true 2020-07-25 00:33:26,458 INFO namenode.FSDirectory: POSIX ACL inheritance enabled? true 2020-07-25 00:33:26,458 INFO namenode.FSDirectory: XAttrs enabled? true 2020-07-25 00:33:26,458 INFO namenode.NameNode: Caching file names occurring more than 10 times 2020-07-25 00:33:26,464 INFO snapshot.SnapshotManager: Loaded config captureOpenFiles: false, skipCaptureAccessTimeOnlyChange: false, snapshotDiffAllowSnapRootDescendant: true, maxSnapshotLimit: 65536 2020-07-25 00:33:26,467 INFO snapshot.SnapshotManager: SkipList is disabled 2020-07-25 00:33:26,472 INFO util.GSet: Computing capacity for map cachedBlocks 2020-07-25 00:33:26,472 INFO util.GSet: VM type = 64-bit 2020-07-25 00:33:26,473 INFO util.GSet: 0.25% max memory 405.5 MB = 1.0 MB 2020-07-25 00:33:26,473 INFO util.GSet: capacity = 2^17 = 131072 entries 2020-07-25 00:33:26,483 INFO metrics.TopMetrics: NNTop conf: dfs.namenode.top.window.num.buckets = 10 2020-07-25 00:33:26,483 INFO metrics.TopMetrics: NNTop conf: dfs.namenode.top.num.users = 10 2020-07-25 00:33:26,483 INFO metrics.TopMetrics: NNTop conf: dfs.namenode.top.windows.minutes = 1,5,25 2020-07-25 00:33:26,489 INFO namenode.FSNamesystem: Retry cache on namenode is enabled 2020-07-25 00:33:26,489 INFO namenode.FSNamesystem: Retry cache will use 0.03 of total heap and retry cache entry expiry time is 600000 millis 2020-07-25 00:33:26,490 INFO util.GSet: Computing capacity for map NameNodeRetryCache 2020-07-25 00:33:26,490 INFO util.GSet: VM type = 64-bit 2020-07-25 00:33:26,491 INFO util.GSet: 0.029999999329447746% max memory 405.5 MB = 124.6 KB 2020-07-25 00:33:26,491 INFO util.GSet: capacity = 2^14 = 16384 entries 2020-07-25 00:33:29,867 INFO namenode.FSImage: Allocated new BlockPoolId: BP-1401655620-192.168.137.86-1595608409866 2020-07-25 00:33:29,937 INFO common.Storage: Storage directory /data/hadoop/dfs/name has been successfully formatted. 2020-07-25 00:33:31,072 INFO namenode.FSImageFormatProtobuf: Saving image file /data/hadoop/dfs/name/current/fsimage.ckpt_0000000000000000000 using no compression 2020-07-25 00:33:31,290 INFO namenode.FSImageFormatProtobuf: Image file /data/hadoop/dfs/name/current/fsimage.ckpt_0000000000000000000 of size 398 bytes saved in 0 seconds . 2020-07-25 00:33:31,295 INFO namenode.NNStorageRetentionManager: Going to retain 1 images with txid >= 0 2020-07-25 00:33:31,513 INFO namenode.FSImage: FSImageSaver clean checkpoint: txid=0 when meet shutdown. 2020-07-25 00:33:31,514 INFO namenode.NameNode: SHUTDOWN_MSG: /************************************************************ SHUTDOWN_MSG: Shutting down NameNode at node1/192.168.137.86 ************************************************************/
4.3.3 同步元数据
[hadoop@node1 name]$ scp -r current/ node2:/data/hadoop/dfs/name/ VERSION 100% 218 144.8KB/s 00:00 seen_txid 100% 2 1.2KB/s 00:00 fsimage_0000000000000000000.md5 100% 62 45.1KB/s 00:00 fsimage_0000000000000000000
4.3.4 格式化zkfc
[hadoop@node1 name]$ hdfs zkfc -formatZK 2020-07-25 00:37:06,719 INFO tools.DFSZKFailoverController: STARTUP_MSG: /************************************************************ STARTUP_MSG: Starting DFSZKFailoverController STARTUP_MSG: host = node1/192.168.137.86 STARTUP_MSG: args = [-formatZK] STARTUP_MSG: version = 3.3.0 STARTUP_MSG: classpath = /usr/local/hadoop/etc/hadoop:/usr/local/hadoop/share/hadoop/common/lib/zookeeper-jute-3.5.6.jar:/usr/local/hadoop/share/hadoop/common/lib/avro-1.7.7.jar:/usr/local/hadoop/share/hadoop/common/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/common/lib/javax.activation-api-1.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-auth-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-mapper-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-math3-3.1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-pkix-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-webapp-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-servlet-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/htrace-core4-4.1.0-incubating.jar:/usr/local/hadoop/share/hadoop/common/lib/audience-annotations-0.5.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jcip-annotations-1.0-1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-server-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-simplekdc-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/accessors-smart-1.2.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-server-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-annotations-2.10.3.jar:/usr/local/hadoop/share/hadoop/common/lib/jaxb-impl-2.2.3-1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-logging-1.1.3.jar:/usr/local/hadoop/share/hadoop/common/lib/gson-2.2.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jettison-1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-collections-3.2.2.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-beanutils-1.9.4.jar:/usr/local/hadoop/share/hadoop/common/lib/httpclient-4.5.6.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-annotations-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/lib/asm-5.0.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-util-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-xdr-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-core-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-identity-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-security-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/jsch-0.1.55.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-compress-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/curator-framework-4.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-core-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-net-3.6.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-jaxrs-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/metrics-core-3.2.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-json-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/dnsjava-2.1.7.jar:/usr/local/hadoop/share/hadoop/common/lib/curator-recipes-4.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-io-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/guava-27.0-jre.jar:/usr/local/hadoop/share/hadoop/common/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-core-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/curator-client-4.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jsr311-api-1.1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-codec-1.11.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-client-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-xml-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/stax2-api-3.1.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-xc-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/token-provider-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-shaded-protobuf_3_7-1.0.0.jar:/usr/local/hadoop/share/hadoop/common/lib/slf4j-api-1.7.25.jar:/usr/local/hadoop/share/hadoop/common/lib/httpcore-4.4.10.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-configuration2-2.1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/woodstox-core-5.0.3.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-lang3-3.7.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-daemon-1.0.13.jar:/usr/local/hadoop/share/hadoop/common/lib/javax.servlet-api-3.1.0.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-admin-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jaxb-api-2.2.11.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-databind-2.10.3.jar:/usr/local/hadoop/share/hadoop/common/lib/checker-qual-2.5.2.jar:/usr/local/hadoop/share/hadoop/common/lib/j2objc-annotations-1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-common-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-http-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-server-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-asn1-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/json-smart-2.3.jar:/usr/local/hadoop/share/hadoop/common/lib/animal-sniffer-annotations-1.17.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-core-2.10.3.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-cli-1.2.jar:/usr/local/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.25.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-text-1.4.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-config-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/netty-3.10.6.Final.jar:/usr/local/hadoop/share/hadoop/common/lib/jsr305-3.0.2.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-io-2.5.jar:/usr/local/hadoop/share/hadoop/common/lib/re2j-1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/zookeeper-3.5.6.jar:/usr/local/hadoop/share/hadoop/common/lib/failureaccess-1.0.jar:/usr/local/hadoop/share/hadoop/common/lib/nimbus-jose-jwt-7.9.jar:/usr/local/hadoop/share/hadoop/common/lib/jsp-api-2.1.jar:/usr/local/hadoop/share/hadoop/common/lib/snappy-java-1.0.5.jar:/usr/local/hadoop/share/hadoop/common/lib/jul-to-slf4j-1.7.25.jar:/usr/local/hadoop/share/hadoop/common/lib/listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-servlet-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-crypto-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/hadoop-registry-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-nfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-kms-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-common-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs:/usr/local/hadoop/share/hadoop/hdfs/lib/zookeeper-jute-3.5.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/avro-1.7.7.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/javax.activation-api-1.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/hadoop-auth-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-mapper-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-math3-3.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-pkix-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-webapp-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-servlet-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/htrace-core4-4.1.0-incubating.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/audience-annotations-0.5.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jcip-annotations-1.0-1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-server-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-simplekdc-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/accessors-smart-1.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-server-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-annotations-2.10.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jaxb-impl-2.2.3-1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-logging-1.1.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/gson-2.2.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jettison-1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-collections-3.2.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-beanutils-1.9.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/httpclient-4.5.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/hadoop-annotations-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/asm-5.0.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-util-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-xdr-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-util-ajax-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-core-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-identity-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-security-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsch-0.1.55.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-compress-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/curator-framework-4.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-core-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-net-3.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-jaxrs-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-json-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/dnsjava-2.1.7.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/curator-recipes-4.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-io-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/guava-27.0-jre.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/okhttp-2.7.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-core-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/curator-client-4.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsr311-api-1.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/json-simple-1.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-codec-1.11.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/netty-all-4.1.50.Final.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-client-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-xml-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/leveldbjni-all-1.8.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/stax2-api-3.1.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-xc-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/token-provider-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/hadoop-shaded-protobuf_3_7-1.0.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/httpcore-4.4.10.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-configuration2-2.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/woodstox-core-5.0.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-lang3-3.7.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/okio-1.6.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-daemon-1.0.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/javax.servlet-api-3.1.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-admin-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jaxb-api-2.2.11.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-databind-2.10.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/checker-qual-2.5.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/j2objc-annotations-1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-common-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-http-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-server-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-asn1-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/json-smart-2.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/animal-sniffer-annotations-1.17.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-core-2.10.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-cli-1.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-text-1.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-config-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/netty-3.10.6.Final.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsr305-3.0.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-io-2.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/re2j-1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/zookeeper-3.5.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/failureaccess-1.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/nimbus-jose-jwt-7.9.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/snappy-java-1.0.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-servlet-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-crypto-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-nfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-native-client-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-client-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-rbf-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-httpfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-rbf-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-native-client-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-client-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-core-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-shuffle-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-uploader-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-nativetask-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-plugins-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-app-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn:/usr/local/hadoop/share/hadoop/yarn/lib/bcprov-jdk15on-1.60.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-module-jaxb-annotations-2.10.3.jar:/usr/local/hadoop/share/hadoop/yarn/lib/asm-tree-7.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/asm-analysis-7.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-jndi-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-plus-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/swagger-annotations-1.5.4.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-server-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/aopalliance-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/guice-4.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/metrics-core-3.2.4.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jna-5.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/HikariCP-java7-2.4.12.jar:/usr/local/hadoop/share/hadoop/yarn/lib/asm-commons-7.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jline-3.9.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-jaxrs-base-2.10.3.jar:/usr/local/hadoop/share/hadoop/yarn/lib/snakeyaml-1.16.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-client-1.19.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax.websocket-api-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-servlet-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/mssql-jdbc-6.2.1.jre7.jar:/usr/local/hadoop/share/hadoop/yarn/lib/geronimo-jcache_1.0_spec-1.0-alpha-1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-common-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jakarta.xml.bind-api-2.3.2.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-client-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/guice-servlet-4.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/json-io-2.5.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/java-util-1.9.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax.inject-1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jakarta.activation-api-1.2.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax-websocket-server-impl-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-api-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/bcpkix-jdk15on-1.60.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-guice-1.19.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-jaxrs-json-provider-2.10.3.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax-websocket-client-impl-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/ehcache-3.3.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-client-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/objenesis-2.6.jar:/usr/local/hadoop/share/hadoop/yarn/lib/fst-2.50.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-annotations-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax.websocket-client-api-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-tests-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-services-api-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-web-proxy-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-api-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-client-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-applicationhistoryservice-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-services-core-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-mawo-core-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-sharedcachemanager-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-registry-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-timeline-pluginstorage-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-router-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-distributedshell-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-nodemanager-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-unmanaged-am-launcher-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-resourcemanager-3.3.0.jar STARTUP_MSG: build = https://gitbox.apache.org/repos/asf/hadoop.git -r aa96f1871bfd858f9bac59cf2a81ec470da649af; compiled by 'brahma' on 2020-07-06T18:44Z STARTUP_MSG: java = 1.8.0_251 ************************************************************/ 2020-07-25 00:37:06,726 INFO tools.DFSZKFailoverController: registered UNIX signal handlers for [TERM, HUP, INT] 2020-07-25 00:37:07,012 INFO tools.DFSZKFailoverController: Failover controller configured for NameNode NameNode at node1/192.168.137.86:9000 2020-07-25 00:37:07,090 INFO zookeeper.ZooKeeper: Client environment:zookeeper.version=3.5.6-c11b7e26bc554b8523dc929761dd28808913f091, built on 10/08/2019 20:18 GMT 2020-07-25 00:37:07,090 INFO zookeeper.ZooKeeper: Client environment:host.name=node1 2020-07-25 00:37:07,090 INFO zookeeper.ZooKeeper: Client environment:java.version=1.8.0_251 2020-07-25 00:37:07,090 INFO zookeeper.ZooKeeper: Client environment:java.vendor=Oracle Corporation 2020-07-25 00:37:07,090 INFO zookeeper.ZooKeeper: Client environment:java.home=/usr/java/jdk1.8.0_251-amd64/jre 2020-07-25 00:37:07,090 INFO zookeeper.ZooKeeper: Client environment:java.class.path=/usr/local/hadoop/etc/hadoop:/usr/local/hadoop/share/hadoop/common/lib/zookeeper-jute-3.5.6.jar:/usr/local/hadoop/share/hadoop/common/lib/avro-1.7.7.jar:/usr/local/hadoop/share/hadoop/common/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/common/lib/javax.activation-api-1.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-auth-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-mapper-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-math3-3.1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-pkix-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-webapp-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-servlet-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/htrace-core4-4.1.0-incubating.jar:/usr/local/hadoop/share/hadoop/common/lib/audience-annotations-0.5.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jcip-annotations-1.0-1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-server-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-simplekdc-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/accessors-smart-1.2.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-server-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-annotations-2.10.3.jar:/usr/local/hadoop/share/hadoop/common/lib/jaxb-impl-2.2.3-1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-logging-1.1.3.jar:/usr/local/hadoop/share/hadoop/common/lib/gson-2.2.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jettison-1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-collections-3.2.2.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-beanutils-1.9.4.jar:/usr/local/hadoop/share/hadoop/common/lib/httpclient-4.5.6.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-annotations-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/lib/asm-5.0.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-util-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-xdr-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-core-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-identity-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-security-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/jsch-0.1.55.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-compress-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/curator-framework-4.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-core-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-net-3.6.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-jaxrs-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/metrics-core-3.2.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-json-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/dnsjava-2.1.7.jar:/usr/local/hadoop/share/hadoop/common/lib/curator-recipes-4.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-io-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/guava-27.0-jre.jar:/usr/local/hadoop/share/hadoop/common/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-core-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/curator-client-4.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jsr311-api-1.1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-codec-1.11.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-client-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-xml-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/stax2-api-3.1.4.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-xc-1.9.13.jar:/usr/local/hadoop/share/hadoop/common/lib/token-provider-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-shaded-protobuf_3_7-1.0.0.jar:/usr/local/hadoop/share/hadoop/common/lib/slf4j-api-1.7.25.jar:/usr/local/hadoop/share/hadoop/common/lib/httpcore-4.4.10.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-configuration2-2.1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/woodstox-core-5.0.3.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-lang3-3.7.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-daemon-1.0.13.jar:/usr/local/hadoop/share/hadoop/common/lib/javax.servlet-api-3.1.0.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-admin-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jaxb-api-2.2.11.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-databind-2.10.3.jar:/usr/local/hadoop/share/hadoop/common/lib/checker-qual-2.5.2.jar:/usr/local/hadoop/share/hadoop/common/lib/j2objc-annotations-1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-common-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-http-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-server-1.19.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-asn1-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/json-smart-2.3.jar:/usr/local/hadoop/share/hadoop/common/lib/animal-sniffer-annotations-1.17.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-core-2.10.3.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-cli-1.2.jar:/usr/local/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.25.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-text-1.4.jar:/usr/local/hadoop/share/hadoop/common/lib/kerby-config-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/netty-3.10.6.Final.jar:/usr/local/hadoop/share/hadoop/common/lib/jsr305-3.0.2.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-io-2.5.jar:/usr/local/hadoop/share/hadoop/common/lib/re2j-1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/zookeeper-3.5.6.jar:/usr/local/hadoop/share/hadoop/common/lib/failureaccess-1.0.jar:/usr/local/hadoop/share/hadoop/common/lib/nimbus-jose-jwt-7.9.jar:/usr/local/hadoop/share/hadoop/common/lib/jsp-api-2.1.jar:/usr/local/hadoop/share/hadoop/common/lib/snappy-java-1.0.5.jar:/usr/local/hadoop/share/hadoop/common/lib/jul-to-slf4j-1.7.25.jar:/usr/local/hadoop/share/hadoop/common/lib/listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-servlet-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/common/lib/kerb-crypto-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/hadoop-registry-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-nfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-kms-3.3.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-common-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs:/usr/local/hadoop/share/hadoop/hdfs/lib/zookeeper-jute-3.5.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/avro-1.7.7.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/javax.activation-api-1.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/hadoop-auth-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-mapper-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-math3-3.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-pkix-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-webapp-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-servlet-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/htrace-core4-4.1.0-incubating.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/audience-annotations-0.5.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jcip-annotations-1.0-1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-server-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-simplekdc-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/accessors-smart-1.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-server-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-annotations-2.10.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jaxb-impl-2.2.3-1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-logging-1.1.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/gson-2.2.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jettison-1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-collections-3.2.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-beanutils-1.9.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/httpclient-4.5.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/hadoop-annotations-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/asm-5.0.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-util-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-xdr-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-util-ajax-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-core-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-identity-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-security-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsch-0.1.55.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-compress-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/curator-framework-4.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-core-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-net-3.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-jaxrs-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-json-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/dnsjava-2.1.7.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/curator-recipes-4.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-io-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/guava-27.0-jre.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/okhttp-2.7.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-core-asl-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/curator-client-4.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsr311-api-1.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/json-simple-1.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-codec-1.11.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/netty-all-4.1.50.Final.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-client-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-xml-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/leveldbjni-all-1.8.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/stax2-api-3.1.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-xc-1.9.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/token-provider-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/hadoop-shaded-protobuf_3_7-1.0.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/httpcore-4.4.10.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-configuration2-2.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/woodstox-core-5.0.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-util-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-lang3-3.7.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/okio-1.6.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-daemon-1.0.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/javax.servlet-api-3.1.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-admin-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jaxb-api-2.2.11.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-databind-2.10.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/checker-qual-2.5.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/j2objc-annotations-1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-common-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-http-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-server-1.19.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-asn1-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/json-smart-2.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/animal-sniffer-annotations-1.17.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-core-2.10.3.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-cli-1.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-text-1.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerby-config-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/netty-3.10.6.Final.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsr305-3.0.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-io-2.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/re2j-1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/zookeeper-3.5.6.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/failureaccess-1.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/nimbus-jose-jwt-7.9.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/snappy-java-1.0.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-servlet-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/kerb-crypto-1.0.1.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-nfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-native-client-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-client-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-rbf-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-httpfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-rbf-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-native-client-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-client-3.3.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-core-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-shuffle-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-uploader-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-3.3.0-tests.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-nativetask-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-plugins-3.3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-app-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn:/usr/local/hadoop/share/hadoop/yarn/lib/bcprov-jdk15on-1.60.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-module-jaxb-annotations-2.10.3.jar:/usr/local/hadoop/share/hadoop/yarn/lib/asm-tree-7.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/asm-analysis-7.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-jndi-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-plus-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/swagger-annotations-1.5.4.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-server-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/aopalliance-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/guice-4.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/metrics-core-3.2.4.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jna-5.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/HikariCP-java7-2.4.12.jar:/usr/local/hadoop/share/hadoop/yarn/lib/asm-commons-7.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jline-3.9.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-jaxrs-base-2.10.3.jar:/usr/local/hadoop/share/hadoop/yarn/lib/snakeyaml-1.16.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-client-1.19.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax.websocket-api-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-servlet-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/mssql-jdbc-6.2.1.jre7.jar:/usr/local/hadoop/share/hadoop/yarn/lib/geronimo-jcache_1.0_spec-1.0-alpha-1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-common-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jakarta.xml.bind-api-2.3.2.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-client-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/guice-servlet-4.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/json-io-2.5.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/java-util-1.9.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax.inject-1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jakarta.activation-api-1.2.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax-websocket-server-impl-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-api-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/bcpkix-jdk15on-1.60.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-guice-1.19.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-jaxrs-json-provider-2.10.3.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax-websocket-client-impl-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/ehcache-3.3.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/websocket-client-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/objenesis-2.6.jar:/usr/local/hadoop/share/hadoop/yarn/lib/fst-2.50.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jetty-annotations-9.4.20.v20190813.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax.websocket-client-api-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-tests-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-services-api-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-web-proxy-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-api-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-client-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-applicationhistoryservice-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-services-core-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-mawo-core-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-sharedcachemanager-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-common-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-registry-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-timeline-pluginstorage-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-router-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-distributedshell-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-nodemanager-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-unmanaged-am-launcher-3.3.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-resourcemanager-3.3.0.jar 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:java.library.path=/usr/local/hadoop/lib/native 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:java.io.tmpdir=/tmp 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:java.compiler=<NA> 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:os.name=Linux 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:os.arch=amd64 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:os.version=3.10.0-1062.el7.x86_64 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:user.name=hadoop 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:user.home=/home/hadoop 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:user.dir=/data/hadoop/dfs/name 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:os.memory.free=31MB 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:os.memory.max=405MB 2020-07-25 00:37:07,105 INFO zookeeper.ZooKeeper: Client environment:os.memory.total=53MB 2020-07-25 00:37:07,108 INFO zookeeper.ZooKeeper: Initiating client connection, connectString=node1:2181,node2:2181,node3:2181 sessionTimeout=1000 watcher=org.apache.hadoop.ha.ActiveStandbyElector$WatcherWithClientRef@55141def 2020-07-25 00:37:07,113 INFO common.X509Util: Setting -D jdk.tls.rejectClientInitiatedRenegotiation=true to disable client-initiated TLS renegotiation 2020-07-25 00:37:07,119 INFO zookeeper.ClientCnxnSocket: jute.maxbuffer value is 4194304 Bytes 2020-07-25 00:37:07,126 INFO zookeeper.ClientCnxn: zookeeper.request.timeout value is 0. feature enabled= 2020-07-25 00:37:07,133 INFO zookeeper.ClientCnxn: Opening socket connection to server node3/192.168.137.88:2181. Will not attempt to authenticate using SASL (unknown error) 2020-07-25 00:37:07,138 INFO zookeeper.ClientCnxn: Socket connection established, initiating session, client: /192.168.137.86:53558, server: node3/192.168.137.88:2181 2020-07-25 00:37:07,146 INFO zookeeper.ClientCnxn: Session establishment complete on server node3/192.168.137.88:2181, sessionid = 0x3000072d1f40001, negotiated timeout = 4000 2020-07-25 00:37:07,174 INFO ha.ActiveStandbyElector: Successfully created /hadoop-ha/myha01 in ZK. 2020-07-25 00:37:07,281 INFO zookeeper.ZooKeeper: Session: 0x3000072d1f40001 closed 2020-07-25 00:37:07,282 WARN ha.ActiveStandbyElector: Ignoring stale result from old client with sessionId 0x3000072d1f40001 2020-07-25 00:37:07,282 WARN ha.ActiveStandbyElector: Ignoring stale result from old client with sessionId 0x3000072d1f40001 2020-07-25 00:37:07,282 INFO zookeeper.ClientCnxn: EventThread shut down for session: 0x3000072d1f40001 2020-07-25 00:37:07,285 INFO tools.DFSZKFailoverController: SHUTDOWN_MSG: /************************************************************ SHUTDOWN_MSG: Shutting down DFSZKFailoverController at node1/192.168.137.86 ************************************************************/
4.3.5 启动hadoop集群
#启动HDFS [hadoop@node1 name]$ start-dfs.sh Starting namenodes on [node1 node2] Starting datanodes Starting journal nodes [node2 node3 node1] node1: journalnode is running as process 10585. Stop it first. node3: journalnode is running as process 10456. Stop it first. node2: journalnode is running as process 10391. Stop it first. Starting ZK Failover Controllers on NN hosts [node1 node2] #启动yarn [hadoop@node2 hadoop]$ start-yarn.sh Starting resourcemanagers on [ node2 node3] Starting nodemanagers #启动 mapreduce 任务历史服务器 [hadoop@node1 name]$ mr-jobhistory-daemon.sh start historyserver WARNING: Use of this script to start the MR JobHistory daemon is deprecated. WARNING: Attempting to execute replacement "mapred --daemon start" instead. #查看java后台 [hadoop@node1 name]$ jps 11809 DFSZKFailoverController 11266 NameNode 11394 DataNode 12566 Jps 12263 JobHistoryServer 11992 NodeManager 10585 JournalNode 8094 QuorumPeerMain [hadoop@node2 hadoop]$ jps 10899 DataNode 11507 ResourceManager 12339 Jps 11622 NodeManager 10391 JournalNode 11114 DFSZKFailoverController 10811 NameNode 7998 QuorumPeerMain [hadoop@node3 hadoop]$ jps 11122 ResourceManager 10868 DataNode 11669 Jps 10456 JournalNode 11198 NodeManager 7983 QuorumPeerMain #查看各主节点状态hdfs/yarn [hadoop@node1 name]$ hdfs haadmin -getServiceState nn1 active [hadoop@node1 name]$ hdfs haadmin -getServiceState nn2 standby [hadoop@node1 name]$ yarn rmadmin -getServiceState rm1 active [hadoop@node1 name]$ yarn rmadmin -getServiceState rm2 standby #关闭 [hadoop@node1 name]$ stop-all.sh WARNING: Stopping all Apache Hadoop daemons as hadoop in 10 seconds. WARNING: Use CTRL-C to abort. Stopping namenodes on [node1 node2] Stopping datanodes Stopping journal nodes [node2 node3 node1] Stopping ZK Failover Controllers on NN hosts [node1 node2] Stopping nodemanagers Stopping resourcemanagers on [ node2 node3]

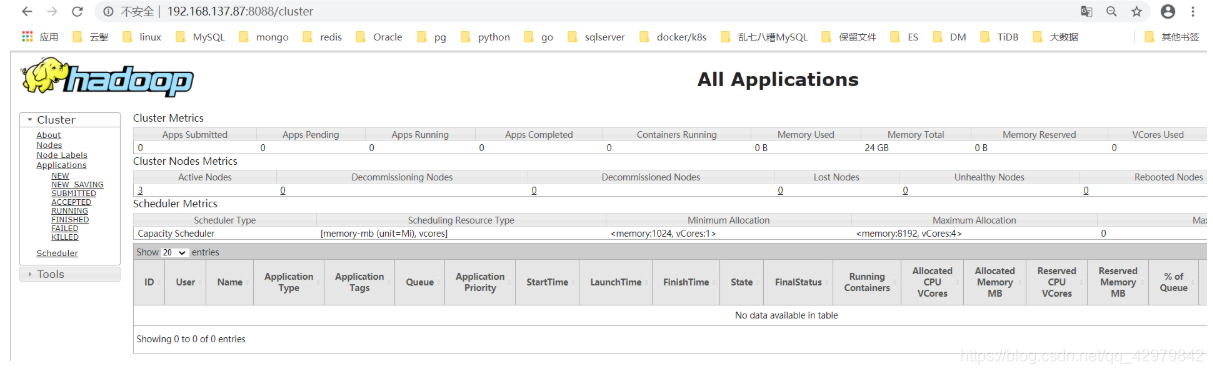

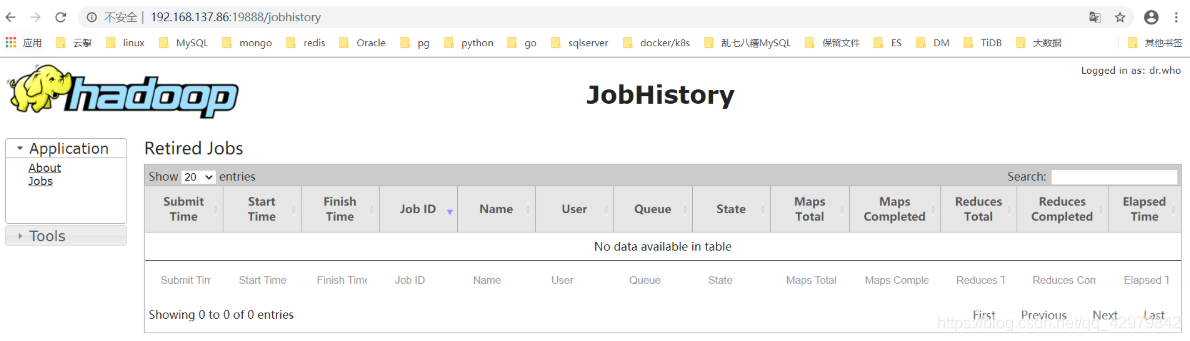

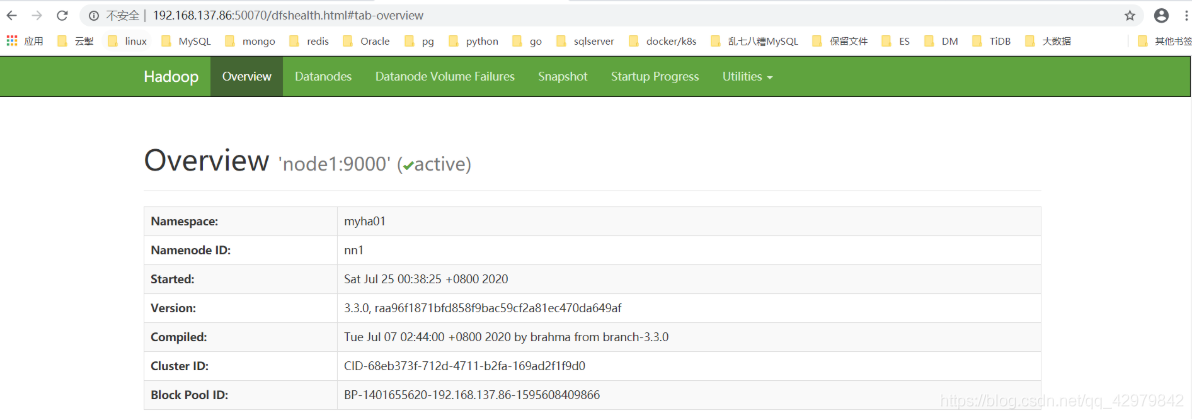

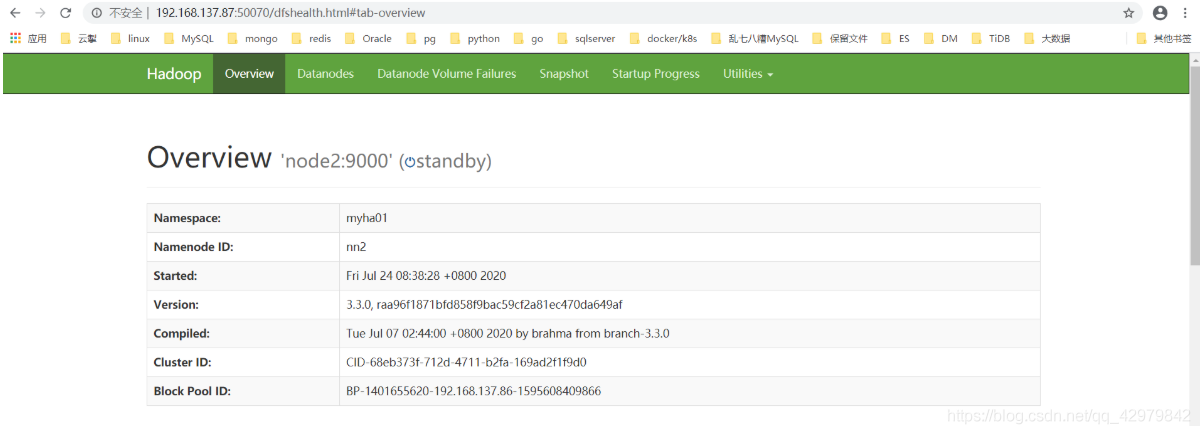

4.3.6 web使用
hdfs dfs -mkdir test hdfs dfs -mkdir /test hdfs dfs -put a.txt /test yarn jar ./hadoop-mapreduce-examples-3.3.0.jar wordcount /test/a.txt /wcout hdfs dfs -cat a.txt
