k8s使用glusterfs存储

1.k8s yaml文件帮助查询

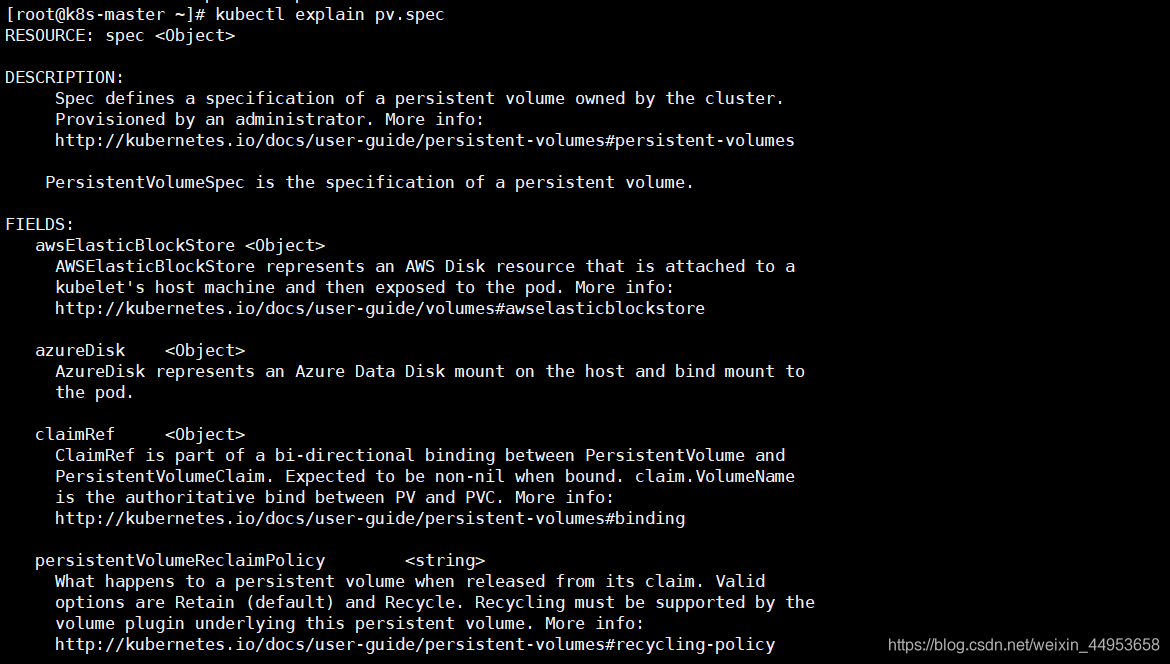

[root@k8s-master ~]# kubectl explain pv.spec

语法格式
	kubectl explain 资源.命令.命令

2.创建endpoint资源

1)编写yaml文件
[root@k8s-master ~]# mkdir /k8s/glusterfs
[root@k8s-master ~]# cd /k8s/glusterfs
[root@k8s-master glusterfs]# vim glusterfs-ep.yaml
apiVersion: v1
kind: Endpoints
metadata:
  name: glusterfs
  namespace: default				#只能对指定的namespace提供存储服务
subsets:
  - addresses:
    - ip: 192.168.81.240
    - ip: 192.168.81.250
    - ip: 192.168.81.136
    ports:
    - port: 49152
      protocol: TCP


2)创建资源
[root@k8s-master glusterfs]# kubectl create -f glusterfs-ep.yaml
endpoints "glusterfs" created

3)查看endpoints资源的信息

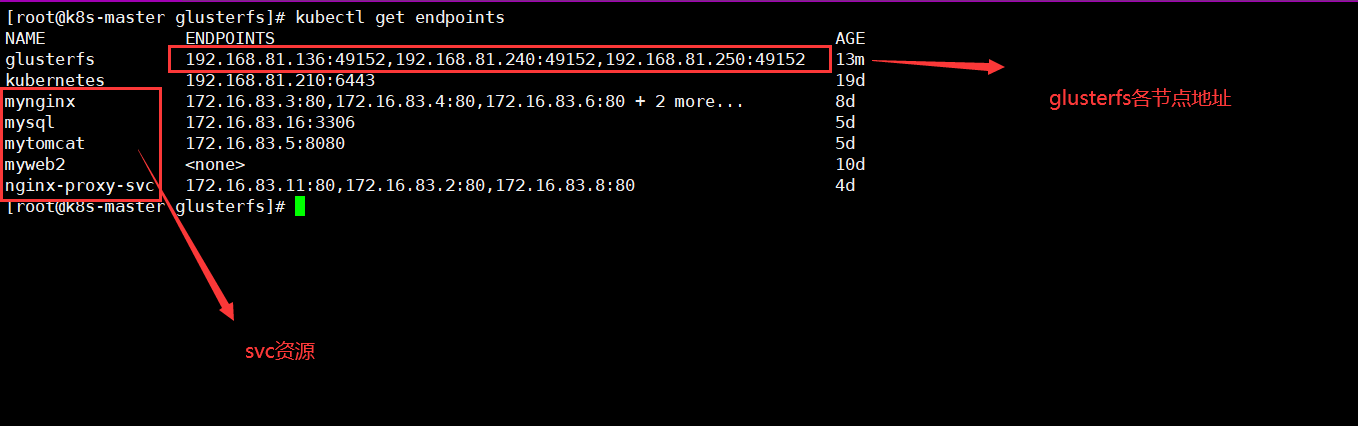

[root@k8s-master glusterfs]# kubectl get endpoints
NAME              ENDPOINTS                                                        AGE
glusterfs         192.168.81.136:49152,192.168.81.240:49152,192.168.81.250:49152   12m
kubernetes        192.168.81.210:6443                                              19d
mynginx           172.16.83.3:80,172.16.83.4:80,172.16.83.6:80 + 2 more...         8d
mysql             172.16.83.16:3306                                                5d
mytomcat          172.16.83.5:8080                                                 5d
myweb2            <none>                                                           10d
nginx-proxy-svc   172.16.83.11:80,172.16.83.2:80,172.16.83.8:80                    4d

3.创建service资源

endpoint资源要和svc资源关联

1)编写yaml文件
[root@k8s-master glusterfs]# vim glusterfs-svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: glusterfs
  namespace: default
spec:
  ports:
  - port: 49152
    protocol: TCP
    targetPort: 49152
  sessionAffinity: None
  type: ClusterIP


2)创建资源
[root@k8s-master glusterfs]# kubectl create -f glusterfs-svc.yaml
service "glusterfs" created


3)查看详细信息
[root@k8s-master glusterfs]# kubectl describe svc glusterfs
Name:			glusterfs
Namespace:		default
Labels:			<none>
Selector:		<none>
Type:			ClusterIP
IP:			10.254.15.38
Port:			<unset>	49152/TCP
Endpoints:		192.168.81.136:49152,192.168.81.240:49152,192.168.81.250:49152		#endpoint的地址
Session Affinity:	None
No events.

4.创建pv资源

1)编写yaml文件
[root@k8s-master glusterfs]# vim glusterfs-pv.yaml
apiVersion: v1
kind: PersistentVolume
metadata:
  name: gluster
  labels:
    type: glusterfs
spec:
  capacity:
    storage: 30Gi
  accessModes:
    - ReadWriteMany
  glusterfs:
    endpoints: "glusterfs"
    path: "web_volume01"
    readOnly: false


2)创建资源
[root@k8s-master glusterfs]# kubectl create -f glusterfs-pv.yaml
persistentvolume "gluster" created


3)查看信息
[root@k8s-master glusterfs]# kubectl get  pv gluster
NAME      CAPACITY   ACCESSMODES   RECLAIMPOLICY   STATUS      CLAIM     REASON    AGE
gluster   30Gi       RWX           Retain          Available                       1m

5.创建pvc资源

1.编写yaml文件
[root@k8s-master glusterfs]# vim glusterfs-pvc.yaml
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: gluster
spec:
  selector:
    matchLabels:
      type: glusterfs
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi

2.创建资源
[root@k8s-master glusterfs]# kubectl create -f glusterfs-pvc.yaml
persistentvolumeclaim "gluster" created

3.查看信息
[root@k8s-master glusterfs]# kubectl get pvc gluster
NAME      STATUS    VOLUME    CAPACITY   ACCESSMODES   AGE
gluster   Bound     gluster   30Gi       RWX           23s

6.将demo项目的mysql数据库使用glusterfs存储资源

6.1.解决windows编码问题

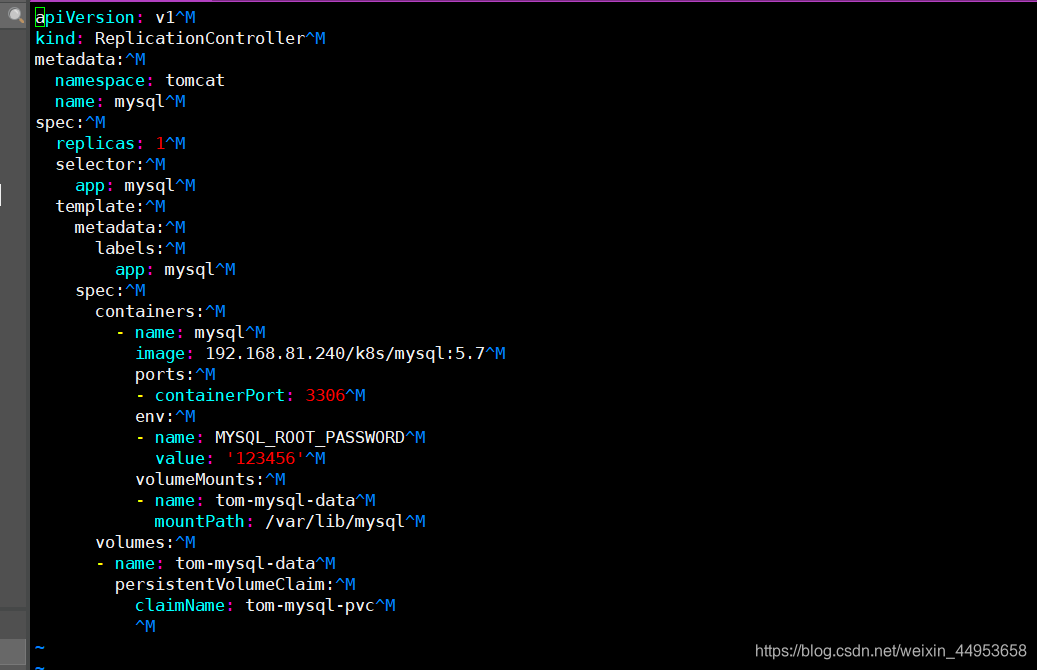

文件中出现这种^M的编码，这是由于从windows传导致的

解决办法：

[root@k8s-master glusterfs]# yum -y install dos2unix

[root@k8s-master glusterfs]# dos2unix mysql-rc.yml
dos2unix: converting file mysql-rc.yml to Unix format ...

6.2.node节点配置

1)配置hosts解析
[root@k8s-node2 gluster_rpm]# vim /etc/host
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.81.210  k8s-master
192.168.81.220  k8s-node1
192.168.81.230  k8s-node2
192.168.81.240 glusterfs01
192.168.81.250 glusterfs02
192.168.81.136 glusterfs03


2)安装glusterfs
[root@k8s-node1 ~]# tar xf gluster_rpm_el7.tar.gz
[root@k8s-node1 ~]# cd gluster_rpm/
[root@k8s-node1 gluster_rpm]# yum -y localinstall *.rpm

6.3.修改yaml配置文件

[root@k8s-master glusterfs]# vim mysql-rc.yml
apiVersion: v1
kind: ReplicationController
metadata:
  name: mysql
spec:
  replicas: 1
  selector:
    app: mysql
  template:
    metadata:
      labels:
        app: mysql
    spec:
      containers:
        - name: mysql
          image: 192.168.81.240/k8s/mysql:5.7
          ports:
          - containerPort: 3306
          env:
          - name: MYSQL_ROOT_PASSWORD
            value: '123456'
          volumeMounts:
          - name: mysql
            mountPath: /var/lib/mysql
      volumes:
      - name: mysql
        persistentVolumeClaim:
          claimName: gluster

6.4.更新配置

[root@k8s-master glusterfs]# kubectl apply -f mysql-rc.yaml
