Centos8使用docker配置gitlab,邮件设置,域名URL访问

Centos8使用docker配置gitlab,邮件设置,域名URL访问

通过docker或是podman容器化安装gitlab,然后设置smtp邮件，使用自定义域名访问。

1，环境。

    系统：Centos8

    容器：docker            映射端口： 6443-->443，6080-->6080，6022-->22       /也就是说gitlab需要使用 443,6080,22三个端口。

                       这里未使用gitlab自带的nginx配置中的80端口,所以需要修改nginx的配置文件，这样作的好处是邮件内容会显示完整的URL+PORT。

    容器挂载目录:     三个目录需要挂载，创建容器前，需要配置好三个目录,

                                mkdir -p /opt/gitlab/{config,logs,data}

                              /opt/gitlab/config    --->  /etc/gitlab

                              /opt/gitlab/logs  ---->   /var/log/gitlab

                             /opt/gitlab/data  ---->   /var/opt/gitlab

    IP: 192.168.137.30

    自定义域名: gitlab.99.com，通过windows的hosts文件解析到 192.168.137.30

2，安装命令。

docker run -d   --hostname gitlab --publish 6443:443 --publish 6080:6080 --publish 6022:22   --name gitlab   --volume /opt/gitlab/config:/etc/gitlab   --volume /opt/gitlab/logs:/var/log/gitlab   --volume /opt/gitlab/data:/var/opt/gitlab gitlab/gitlab-ce:14.3.6-ce.0

3，修改配置文件/opt/gitlab/config/gitlab.rb

具体要修改内容 如下：

## GitLab URL

##! URL on which GitLab will be reachable.

##! For more details on configuring external_url see:

##! https://docs.gitlab.com/omnibus/settings/configuration.html#configuring-the-external-url-for-gitlab

##!

##! Note: During installation/upgrades, the value of the environment variable

##! EXTERNAL_URL will be used to populate/replace this value.

##! On AWS EC2 instances, we also attempt to fetch the public hostname/IP

##! address from AWS. For more details, see:

##! https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/instancedata-data-retrieval.html

##!设置外部访问域名,我这里使用自定义域名加端口

 external_url 'http://gitlab.99.com:6080'

## Roles for multi-instance GitLab

##! The default is to have no roles enabled, which results in GitLab running as an all-in-one instance.

##! Options:

##!   redis_sentinel_role redis_master_role redis_replica_role geo_primary_role geo_secondary_role

##!   postgres_role consul_role application_role monitoring_role

##! For more details on each role, see:

##! https://docs.gitlab.com/omnibus/roles/README.html#roles

##!

# roles ['redis_sentinel_role', 'redis_master_role']

## Legend

##! The following notations at the beginning of each line may be used to

##! differentiate between components of this file and to easily select them using

##! a regex.

##! ## Titles, subtitles etc

##! ##! More information - Description, Docs, Links, Issues etc.

##! Configuration settings have a single # followed by a single space at the

##! beginning; Remove them to enable the setting.

##! **Configuration settings below are optional.**

################################################################################

################################################################################

##                Configuration Settings for GitLab CE and EE                 ##

################################################################################

################################################################################

################################################################################

## gitlab.yml configuration

##! Docs: https://gitlab.com/gitlab-org/omnibus-gitlab/blob/master/doc/settings/gitlab.yml.md

################################################################################

# gitlab_rails['gitlab_ssh_host'] = 'ssh.host_example.com'

# gitlab_rails['gitlab_ssh_user'] = ''

##!设置时区

 gitlab_rails['time_zone'] = 'Asia/Shanghai'

### Request duration

###! Tells the rails application how long it has to complete a request

###! This value needs to be lower than the worker timeout set in puma.

###! By default, we'll allow 95% of the the worker timeout

# gitlab_rails['max_request_duration_seconds'] = 57

### GitLab email server settings

###! Docs: https://docs.gitlab.com/omnibus/settings/smtp.html

###! **Use smtp instead of sendmail/postfix.**

##!配置smtp邮件信息,使用163mail

 gitlab_rails['smtp_enable'] = true

 gitlab_rails['smtp_address'] = "smtp.163.com"

 gitlab_rails['smtp_port'] = 465

 gitlab_rails['smtp_user_name'] = "123456@163.com"

 gitlab_rails['smtp_password'] = "1234560806"

 gitlab_rails['smtp_domain'] = "163.com"

 gitlab_rails['smtp_authentication'] = "login"

 gitlab_rails['smtp_enable_starttls_auto'] = true

 gitlab_rails['smtp_tls'] = true

 gitlab_rails['smtp_pool'] = false

###! **Can be: 'none', 'peer', 'client_once', 'fail_if_no_peer_cert'**

###! Docs: http://api.rubyonrails.org/classes/ActionMailer/Base.html

# gitlab_rails['smtp_openssl_verify_mode'] = 'none'

# gitlab_rails['smtp_ca_path'] = "/etc/ssl/certs"

# gitlab_rails['smtp_ca_file'] = "/etc/ssl/certs/ca-certificates.crt"

### Email Settings

##!开启邮箱功能

 gitlab_rails['gitlab_email_enabled'] = true

##! If your SMTP server does not like the default 'From: gitlab@gitlab.example.com'

##! can change the 'From' with this setting.

##! 配置注册用户收到的提示信息账号.

 gitlab_rails['gitlab_email_from'] = '123456@163.com'

 gitlab_rails['gitlab_email_display_name'] = 'gitlab-admin'

 gitlab_rails['gitlab_email_reply_to'] = '123456@163.com'

# gitlab_rails['gitlab_email_subject_suffix'] = ''

# gitlab_rails['gitlab_email_smime_enabled'] = false

# gitlab_rails['gitlab_email_smime_key_file'] = '/etc/gitlab/ssl/gitlab_smime.key'

# gitlab_rails['gitlab_email_smime_cert_file'] = '/etc/gitlab/ssl/gitlab_smime.crt'

# gitlab_rails['gitlab_email_smime_ca_certs_file'] = '/etc/gitlab/ssl/gitlab_smime_cas.crt'

### GitLab user privileges

# gitlab_rails['gitlab_default_can_create_group'] = true

# gitlab_rails['gitlab_username_changing_enabled'] = true

4，修改gitlab中nginx配置文件端口，修改成6080

        作此修改端口后，gitlab每次发的邮件提示内容，就会是完整的URL+端口，直接点击，邮箱中的连接就可以正常登陆。

具体如下：

/opt/gitlab/data/nginx/conf/gitlab-http.conf

server {

  listen *:6080;

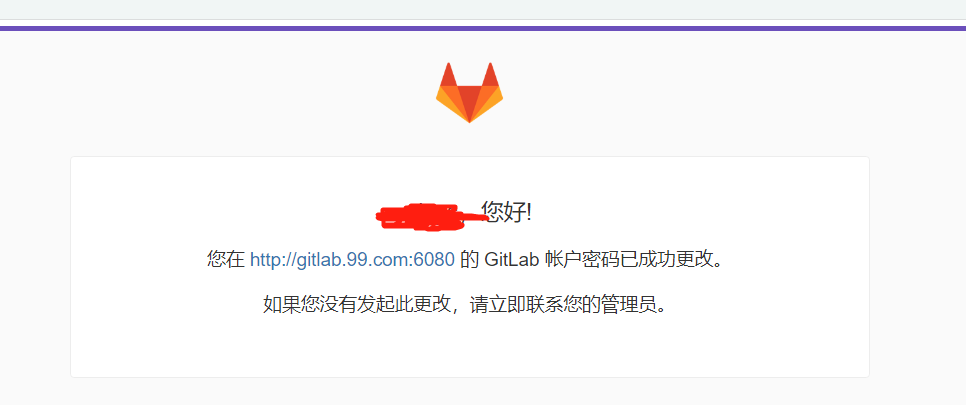

5，测试登陆gitlab,并创建账号，会提示邮件收到相关信息。
