Keepalived+Lvs 原来如此简单，so easy

21 12月
作者:admin|分类:系统运维

前言

 在lvs架构中，当后端的rs宕掉时，调度器仍会把请求转发到宕掉的rs上，而使用keepalived就可以解决该问题。

keepalived已经嵌入了lvs功能，无需使用ipvsadm & 无需编写lvs相关脚本。完整的keepalived+lvs需要两台调度器实现高可用，提供调度服务的只需要一台，另外一台作为备用。

用了lvs加keepalived可以使用一个VIP，LVS和keepalived整合的话，哪我们不需要手工去配置VIP操作了

[root@localhost ~]# ipvsadm -A -t 192.168.179.199:80 -s rr
[root@localhost ~]# ipvsadm -a -t 192.168.179.199:80 -r 192.168.179.100 -g -w 100

这些步骤都不再需要了，只需要ipvs模块就行了，即有ipvsadm管理命令就行了

结构：
主keepalived（调度器）：192.168.179.102
备keepalived（调度器）：192.168.179.103

真实服务器rs1：192.168.179.99
真实服务器rs1：192.168.179.104

VIP：192.168.179.199
lvs为dr模式，rs主机上运行着提供80服务的nginx



keepalived 配置文件结构

vrrp_instance VI_1

vrrp_instance VI_1 {
    state  MASTER
    interface  ens33
    virtual_router_id 51
    priority 100
    advert_int 5
    nopreempt
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.179.199
    }
}

# Virtualserver也用这个VIP
virtual_server 192.168.179.199 80 {
}

 virtual_server

virtual_server 192.168.1.199 80 {
这个是LVS的配置  后面指定的是VIP
lb_algo wrr  算法
lb_kind DR 指定转发方式是DR模式


virtual_server 192.168.179.199 80 {
    delay_loop 6   #监控检查时间间隔，keepalived可以检查后端机器的服务状态(Keepalived会每隔6秒去探测后端real srver的80端口是不是能够通，不通踢出LVS均衡，如果正常访问会加到均衡里面来)
    lb_algo rr     #调度算法，一般是rr模式
    lb_kind DR     #转发方式
    persistence_timeout  60  #会话保持时间，五秒之内用户请求都在后端一台机器上
    protocol TCP

后面一个real server配置一个段，要将后端的真实IP写进去，有多少个机器加多少个

real_server
    real_server 192.168.33.12 80 {
        weight 100
        TCP_CHECK {
        connect_timeout 10
        nb_get_retry 3
        delay_before_retry 3
        connect_port 80
        }
}

Ipvsadmin还需要安装，安装目的是通过-Ln查看



配置真实服务器real-server

在192.168.179.99，192.168.179.104 nginx服务器上怕配置VIP和抑制ARP请求

简单说一下:  假设A为前端负载均衡服务器， B,C为后端真实服务器。 A接收到数据包以后，会把数据包的MAC地址改成B的（根据调度算法，假设发给B服务器），然后把数据包重新发出去，交换机收到数据包根据MAC地址找到B，把数据包交给B。 这时B会收到数据包，同时验证请求IP地址，由于数据包里的IP地址是给A的，所以正常情况下B会丢弃数据包，为了防止这种情况，需要在B机器的回环网卡上配置A的IP地址。并设置ARP压制。

通过下面脚本在lo网卡上配置VIP和抑制ARP请求

[root@localhost ~]# cat real-server.sh
#!/bin/bash
#description : start realserver
VIP=192.168.179.199

case "$1" in
start)
	echo "start LVS of REALServer"
	/sbin/ifconfig lo:0 $VIP broadcast $VIP netmask 255.255.255.255 up
	echo "1" >/proc/sys/net/ipv4/conf/lo/arp_ignore
	echo "2" >/proc/sys/net/ipv4/conf/lo/arp_announce
	echo "1" >/proc/sys/net/ipv4/conf/all/arp_ignore
	echo "2" >/proc/sys/net/ipv4/conf/all/arp_announce
;;
stop)
	/sbin/ifconfig lo:0 down
	echo "close LVS EEALServer"
	echo "0" >/proc/sys/net/ipv4/conf/lo/arp_ignore
	echo "0" >/proc/sys/net/ipv4/conf/lo/arp_announce
	echo "0" >/proc/sys/net/ipv4/conf/all/arp_ignore
	echo "0" >/proc/sys/net/ipv4/conf/all/arp_announce
;;
*)
	echo "Usage: $0 {start|stop}"
	exit 1
esac


[root@localhost ~]# ./real-server.sh start
start LVS of REALServer

# 输入ifconfig查看虚拟IP是否已经绑定到回环网卡
[root@localhost ~]# ifconfig
lo:0: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 192.168.179.199  netmask 255.255.255.255
        loop  txqueuelen 1  (Local Loopback)


# 在lvs机器上192.168.179.102上ping192.168.179.199可以看到ARP被抑制了
[root@localhost ~]# ping 192.168.179.199
PING 192.168.179.199 (192.168.179.199) 56(84) bytes of data.
From 192.168.179.102 icmp_seq=1 Destination Host Unreachable
From 192.168.179.102 icmp_seq=2 Destination Host Unreachable
From 192.168.179.102 icmp_seq=3 Destination Host Unreachable
^C
--- 192.168.179.199 ping statistics ---
5 packets transmitted, 0 received, +3 errors, 100% packet loss, time 4029ms
pipe 4



配置Keepalived

Master 192.169.179.102 配置

[root@localhost ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
   router_id LVS_DEVEL
}

# VIP1
vrrp_instance VI_1 {
    state  MASTER
    interface  ens32
    virtual_router_id 51
    priority 100
    advert_int 5
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.179.199
    }
}

virtual_server 192.168.179.199 80 {   # 这里配置虚拟服务器 （192.168.179.199 为虚拟IP， 监听80端口）客户端就访问这个地址
    delay_loop 6    # 健康检查时间间隔，单位是秒
    lb_algo rr      # 负载均衡调度算法，互联网应用常使用 wlc 或 rr
    lb_kind DR      # 负载均衡转发规则。一般包括 DR,NAT,TUN3 种，在我的方案中，都使用DR 的方式。
    persistence_timeout  60   # 会话保持时间，单位是秒。这个会话是网络7层传输协议中的（第三层）会话。比如我们把它设置为60，那么客户端60秒内访问LVS虚拟服务器的请求都会被转到到同1个后台服务器节点。如果设置为0，那么每次请求都会根据配置的调度情况进行分发。
    protocol TCP    # 转发协议 protocol，一般有 tcp 和 udp 两种。实话说，我还没尝试过 udp 协议类的转发。
    real_server 192.168.179.104 80 { # 这里配置真实服务器的地址与端口
        weight 100                   # 权重，不解释了。一般都是机器性能好的高一些，低的小一些。
        TCP_CHECK {
        connect_timeout 10           # 连接超时时间
        nb_get_retry 3               # 重连次数
        delay_before_retry 3         # 重连间隔时间
        connect_port 80              # 检测端口
        }
    }
    real_server 192.168.179.99 80 {
        weight 100
        TCP_CHECK {
        connect_timeout 10
        nb_get_retry 3
        delay_before_retry 3
        connect_port 80
        }
    }
}

启动Master的keepalived(最重要的就是查看日志和使用ipvsadm工具来查看)

[root@localhost ~]# tail -f /var/log/messages
Nov 25 10:46:57 localhost Keepalived_vrrp[38768]: VRRP_Instance(VI_1) Entering MASTER STATE
Nov 25 10:46:57 localhost Keepalived_vrrp[38768]: VRRP_Instance(VI_1) setting protocol VIPs.
Nov 25 10:46:57 localhost Keepalived_vrrp[38768]: Sending gratuitous ARP on ens32 for 192.168.179.199
Nov 25 10:46:57 localhost Keepalived_vrrp[38768]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on ens32 for 192.168.179.199
Nov 25 10:46:57 localhost Keepalived_vrrp[38768]: Sending gratuitous ARP on ens32 for 192.168.179.199
Nov 25 10:46:57 localhost Keepalived_vrrp[38768]: Sending gratuitous ARP on ens32 for 192.168.179.199
Nov 25 10:46:57 localhost Keepalived_vrrp[38768]: Sending gratuitous ARP on ens32 for 192.168.179.199
Nov 25 10:46:57 localhost Keepalived_vrrp[38768]: Sending gratuitous ARP on ens32 for 192.168.179.199
Nov 25 10:47:00 localhost Keepalived_healthcheckers[38767]: TCP connection to [192.168.179.99]:80 success.
Nov 25 10:47:00 localhost Keepalived_healthcheckers[38767]: Adding service [192.168.179.99]:80 to VS [192.168.179.199]:80
Nov 25 10:47:00 localhost Keepalived_healthcheckers[38767]: Gained quorum 1+0=1 <= 100 for VS [192.168.179.199]:80
Nov 25 10:47:02 localhost Keepalived_vrrp[38768]: Sending gratuitous ARP on ens32 for 192.168.179.199
Nov 25 10:47:02 localhost Keepalived_vrrp[38768]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on ens32 for 192.168.179.199
Nov 25 10:47:02 localhost Keepalived_vrrp[38768]: Sending gratuitous ARP on ens32 for 192.168.179.199
Nov 25 10:47:02 localhost Keepalived_vrrp[38768]: Sending gratuitous ARP on ens32 for 192.168.179.199
Nov 25 10:47:02 localhost Keepalived_vrrp[38768]: Sending gratuitous ARP on ens32 for 192.168.179.199
Nov 25 10:47:02 localhost Keepalived_vrrp[38768]: Sending gratuitous ARP on ens32 for 192.168.179.199
Nov 25 10:47:06 localhost Keepalived_healthcheckers[38767]: TCP connection to [192.168.179.104]:80 success.
Nov 25 10:47:06 localhost Keepalived_healthcheckers[38767]: Adding service [192.168.179.104]:80 to VS [192.168.179.199]:80


# 可以看到通过健康检查加入了后端
[root@localhost ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.179.199:80 rr persistent 60
  -> 192.168.179.99:80            Route   100    0          0
  -> 192.168.179.104:80           Route   100    0          0

# 单独的keepalived是没有健康检查的，单独的keepalive是用shell脚本来实现健康检查的，这里用到的是keepalived内部的模块，通过TCP端口监测，如果是mysql就监测3306端口，如果是nginx那么就监测80端口
# delay_loop 6每隔6s去探测主机80端口是否通 ，如果不通将real server剔除出去，如果又可以正常访问就就加到均衡里面来

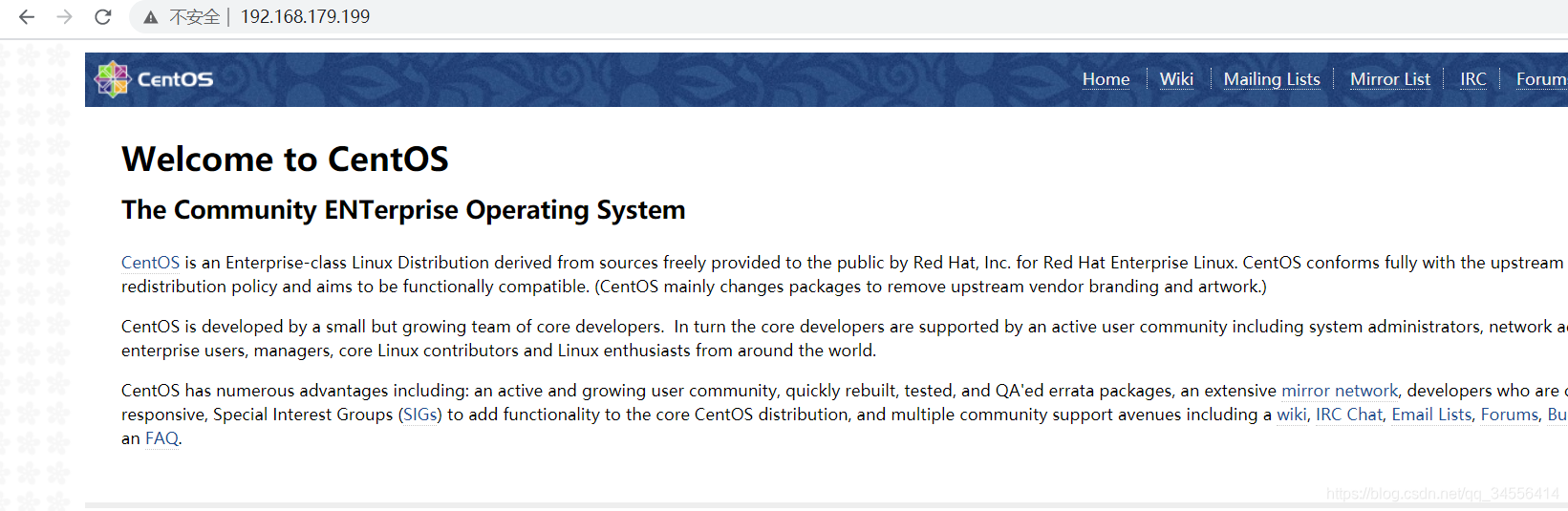

[root@localhost ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.179.199:80 rr persistent 60
  -> 192.168.179.99:80            Route   100    0          0
  -> 192.168.179.104:80           Route   100    2          0

 192.168.179.103 slave 配置

[root@localhost ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
   router_id LVS_DEVEL
}

# VIP1
vrrp_instance VI_1 {
    state  BACKUP
    interface  ens32
    virtual_router_id 51
    priority 50
    advert_int 5
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.179.199
    }
}

virtual_server 192.168.179.199 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout  60
    protocol TCP
    real_server 192.168.179.104 80 {
        weight 100
        TCP_CHECK {
        connect_timeout 10
        nb_get_retry 3
        delay_before_retry 3
        connect_port 80
        }
    }
    real_server 192.168.179.99 80 {
        weight 100
        TCP_CHECK {
        connect_timeout 10
        nb_get_retry 3
        delay_before_retry 3
        connect_port 80
        }
    }
}


[root@localhost ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.179.199:80 rr persistent 60
  -> 192.168.179.99:80            Route   100    0          0
  -> 192.168.179.104:80           Route   100    0          0

上面整个配置下来可以看到LVS和keepalived整合只是加了一段代码virtual_server {real_server}



健康检查 TCP方式检查

来看看下面的作用

TCP_CHECK {
        connect_timeout 10
        nb_get_retry 3
        delay_before_retry 3
        connect_port 80
        }

现在后端两台nginx正常

[root@localhost ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.179.199:80 rr persistent 60
  -> 192.168.179.99:80            Route   100    0          0
  -> 192.168.179.104:80           Route   100    0          0

现在来到192.168.179.99将nginx干掉

[root@localhost ~]# pkill nginx

再来看看主备keepalived的日志

Master
Nov 25 11:17:50 localhost Keepalived_healthcheckers[38767]: TCP connection to [192.168.179.99]:80 failed.
Nov 25 11:17:53 localhost Keepalived_healthcheckers[38767]: TCP connection to [192.168.179.99]:80 failed.
Nov 25 11:17:53 localhost Keepalived_healthcheckers[38767]: Check on service [192.168.179.99]:80 failed after 1 retry.
Nov 25 11:17:53 localhost Keepalived_healthcheckers[38767]: Removing service [192.168.179.99]:80 from VS [192.168.179.199]:80

Slave
Nov 25 11:17:52 localhost Keepalived_healthcheckers[7827]: TCP connection to [192.168.179.99]:80 failed.
Nov 25 11:17:52 localhost Keepalived_healthcheckers[7827]: Check on service [192.168.179.99]:80 failed after 1 retry.
Nov 25 11:17:52 localhost Keepalived_healthcheckers[7827]: Removing service [192.168.179.99]:80 from VS [192.168.179.199]:80

# 可以看到健康检查失败，会将其踢出后端节点

Master
[root@localhost ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.179.199:80 rr persistent 60
  -> 192.168.179.104:80           Route   100    0          0

Slave
[root@localhost ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.179.199:80 rr persistent 60
  -> 192.168.179.104:80           Route   100    0          0

现在将nginx拉起来

[root@localhost ~]# nginx

再来看看keepalived的日志

Master
Nov 25 11:21:54 localhost Keepalived_healthcheckers[38767]: TCP connection to [192.168.179.99]:80 success.
Nov 25 11:21:54 localhost Keepalived_healthcheckers[38767]: Adding service [192.168.179.99]:80 to VS [192.168.179.199]:80

Slave
Nov 25 11:21:55 localhost Keepalived_healthcheckers[7827]: TCP connection to [192.168.179.99]:80 success.
Nov 25 11:21:55 localhost Keepalived_healthcheckers[7827]: Adding service [192.168.179.99]:80 to VS [192.168.179.199]:80

Master
[root@localhost ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.179.199:80 rr persistent 60
  -> 192.168.179.99:80            Route   100    0          0
  -> 192.168.179.104:80           Route   100    0          0

slave
[root@localhost ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.179.199:80 rr persistent 60
  -> 192.168.179.99:80            Route   100    0          0
  -> 192.168.179.104:80           Route   100    0          0

#健康检查通过，将之前踢出的机器又重新加回来了



健康检查 HTTP_GET方式检查

HTTP_GET：配置健康检查

    real_server 192.168.179.104 80 {
        weight 100
        HTTP_GET {
            url {
                path /index.html
                status_code 200
            }
            nb_get_retry 3
            delay_before_retry 3
            connect_timeout 5
        }
    }

connect_timeout 5   ：连接超时时间
nb_get_retry 3        ：重连次数
delay_before_retry 3  ：重连间隔时间
connect_port 8080        ：检测端口

 通过上诉命令计算digest  然后写到配置文件上就可以了。



Keepalived Master发生故障（故障转移）

 Master(如果将keeplived关闭，那么LVS也不可用了)

[root@localhost ~]# systemctl stop keepalived
[root@localhost ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn

Backup(可以看到vip发生了飘移)

[root@localhost ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:61:90:c1 brd ff:ff:ff:ff:ff:ff
    inet 192.168.179.103/24 brd 192.168.179.255 scope global ens32
       valid_lft forever preferred_lft forever
    inet 192.168.179.199/32 scope global ens32
       valid_lft forever preferred_lft forever
    inet6 fe80::f54d:5639:6237:2d0e/64 scope link
       valid_lft forever preferred_lft forever

#继续对外提供服务
[root@localhost ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.179.199:80 rr persistent 60
  -> 192.168.179.99:80            Route   100    0          0
  -> 192.168.179.104:80           Route   100    2          0

通过上面我相信你对kkepalived+lvs有个清晰了解，本片文章就介绍到这。

更多文章推荐

历史上的今天
12月
21
浏览402 评论0
返回
目录 返回
首页
Dokcer 资源隔离：为什么构建容器需要 Namespace ？ Keepalived 双主模式
↑
