sonarqube api接口

21 12月
作者:admin|分类:系统运维

//查找项目

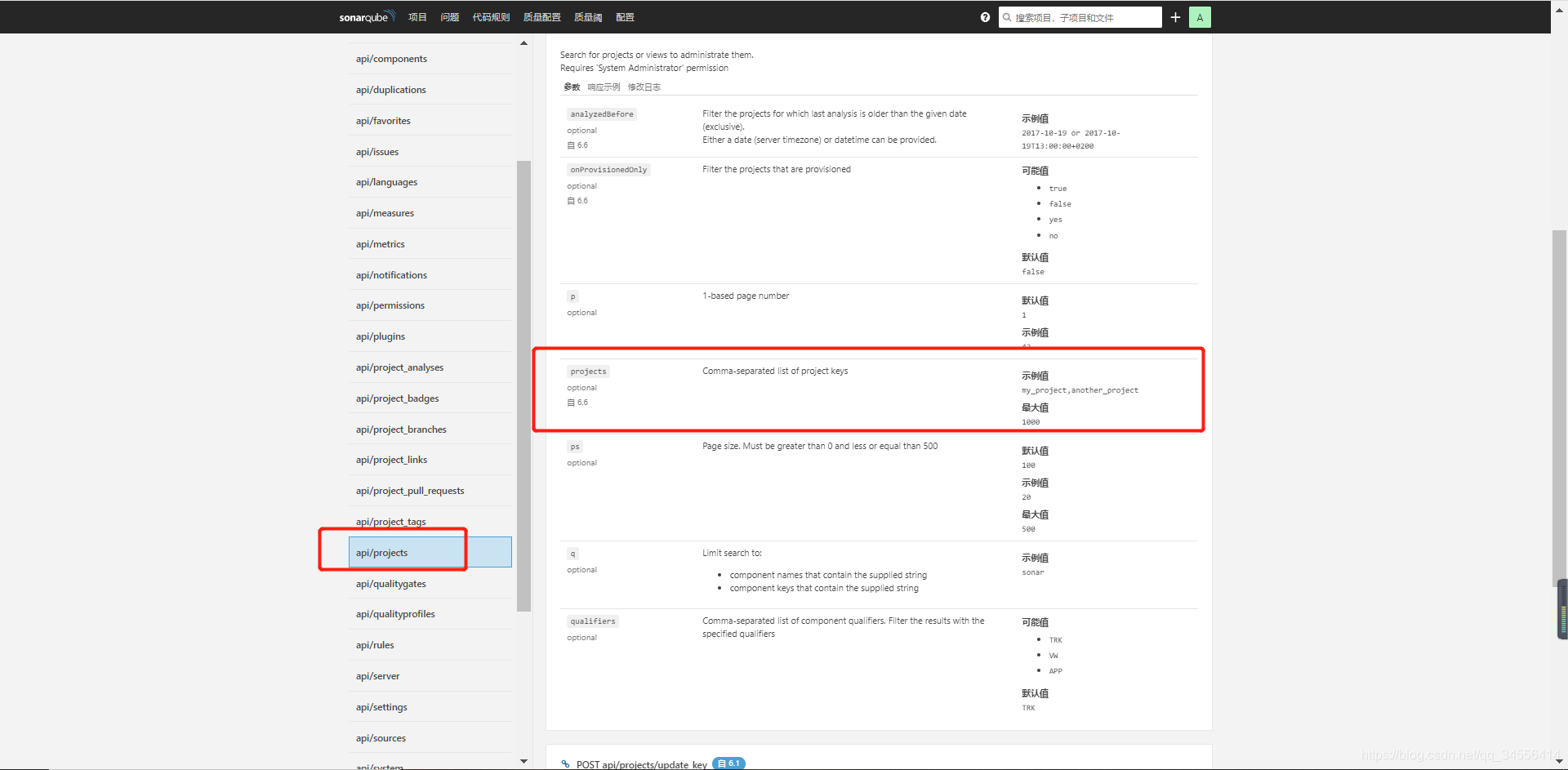

api/projects/search?projects=${projectName}"

//创建项目
api/projects/create?name=${projectName}&project=${projectName}"

//更新语言规则集
api/qualityprofiles/add_project?language=${language}&qualityProfile=${qualityProfile}&project=${projectName}"

//项目授权
api/permissions/apply_template?projectKey=${projectKey}&templateName=${templateName}"

//更新质量阈
api/qualitygates/select?projectKey=${projectKey}&gateId=${gateId}"

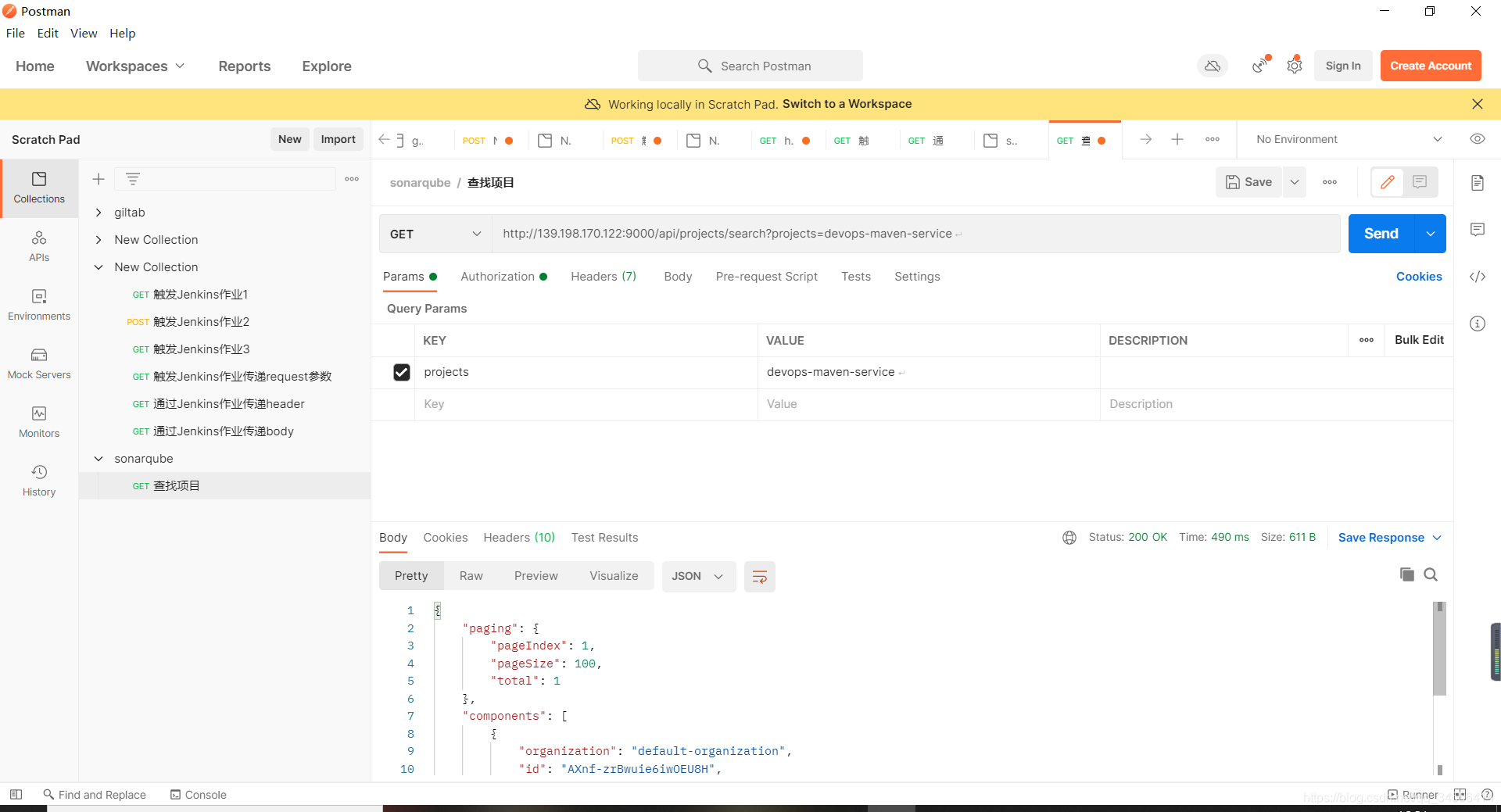

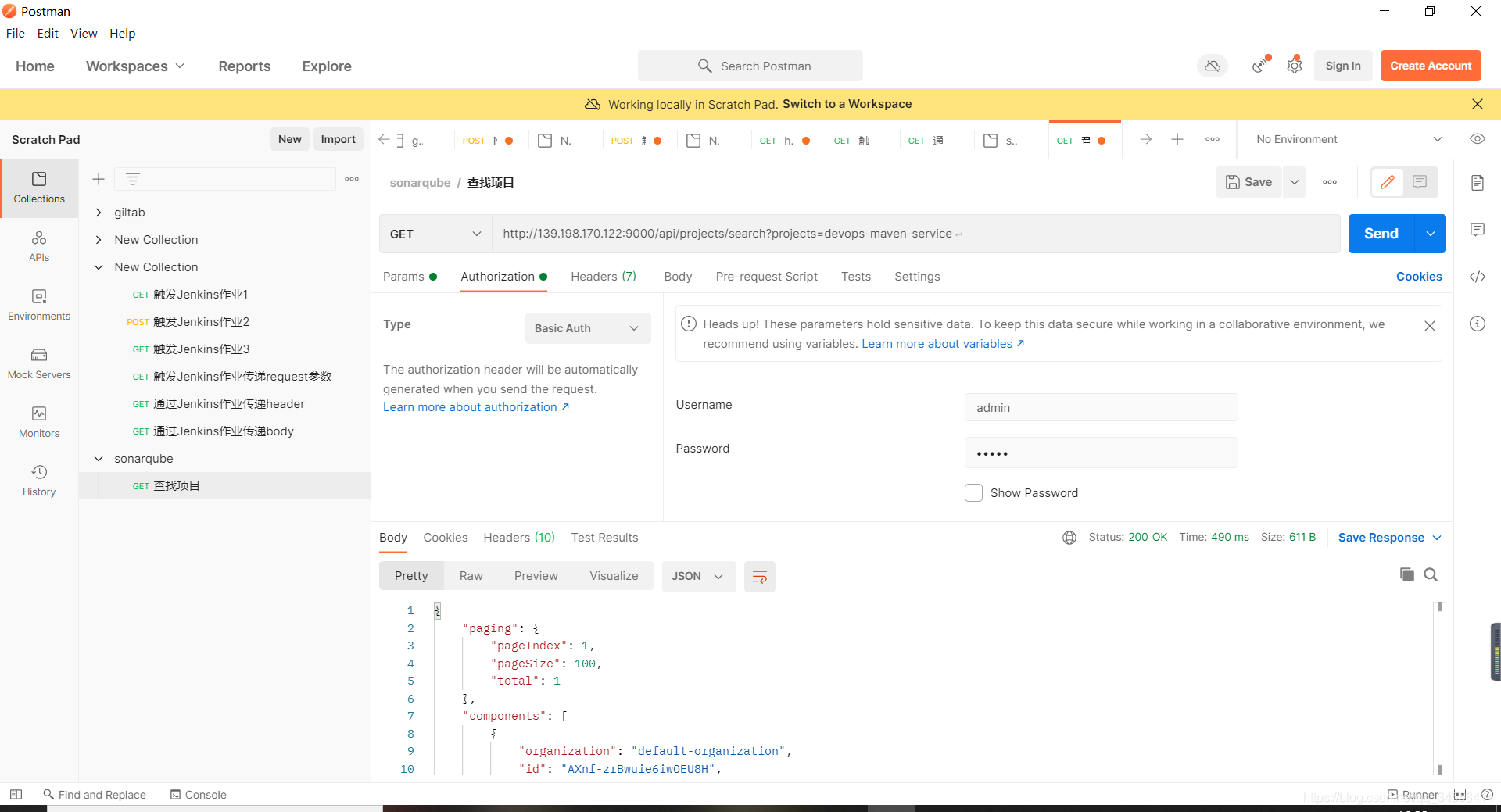

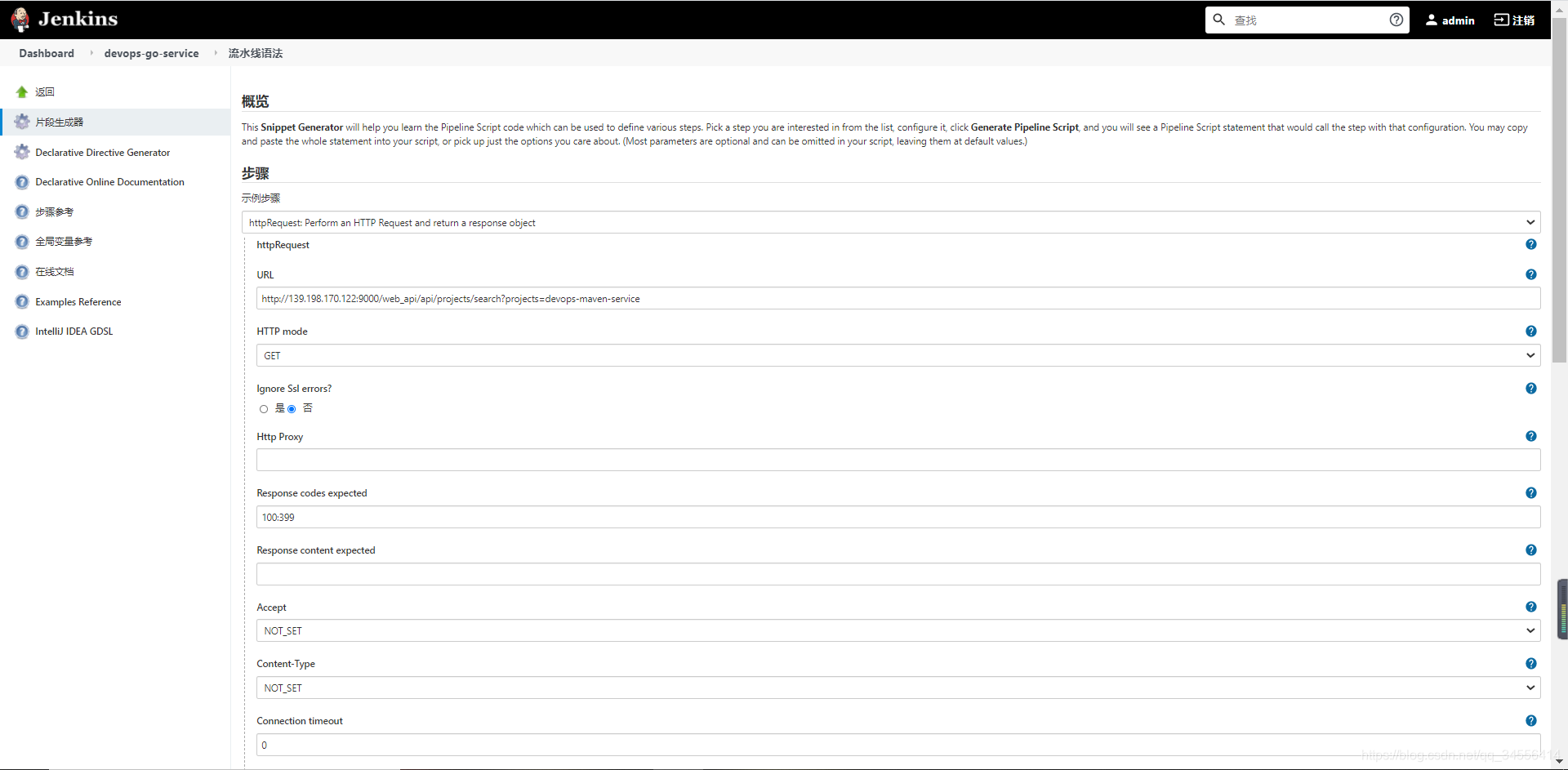

http://139.198.170.122:9000/api/projects/search?projects=devops-maven-service

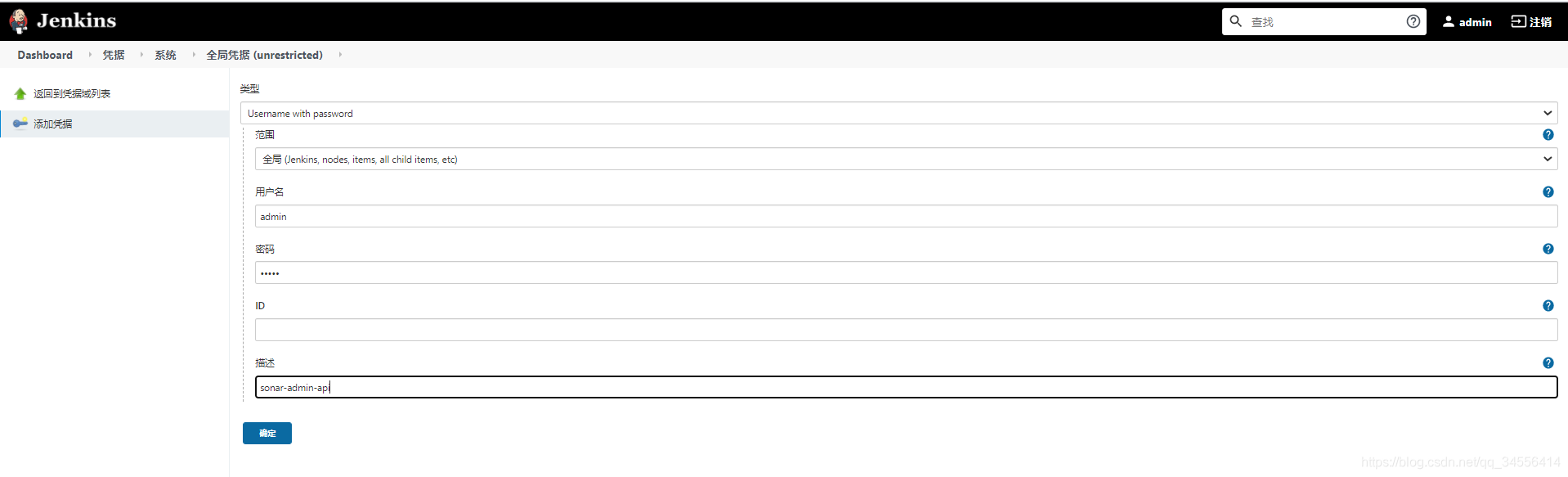

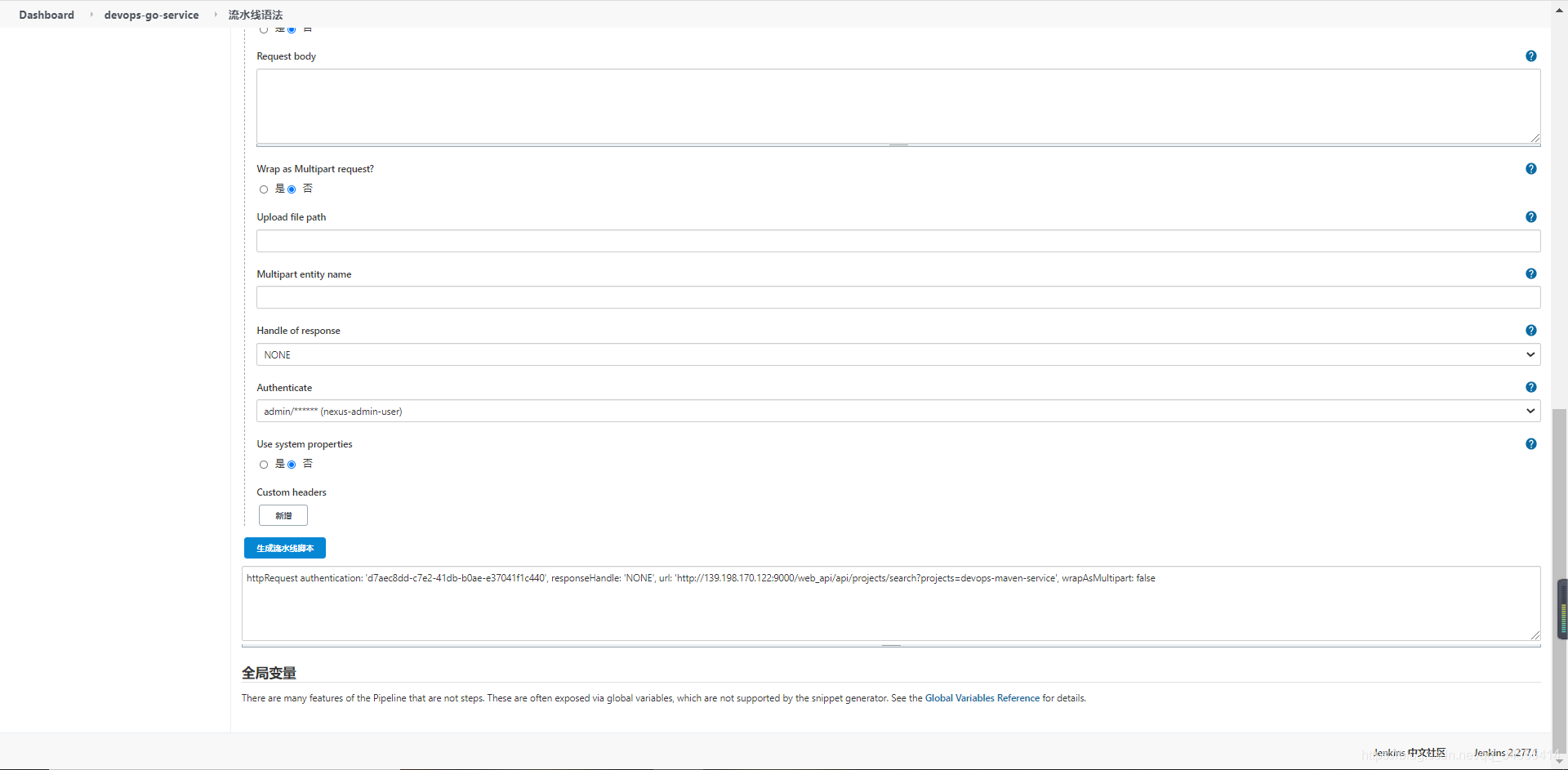

httpRequest authentication: 'd7aec8dd-c7e2-41db-b0ae-e37041f1c440', responseHandle: 'NONE', url: 'http://139.198.170.122:9000/web_api/api/projects/search?projects=devops-maven-service', wrapAsMultipart: false
steps {
        script {
         def response = httpRequest authentication: 'e89c6fa4-d9a2-4042-b3a5-8b00ff372d92',
                      url: 'http://139.198.170.122:9000/api/projects/search?projects=devops-maven-service',
                      wrapAsMultipart: false
         print(response.content)
        }
      }



HttpMethod: GET
URL: http://139.198.170.122:9000/api/projects/search?projects=devops-maven-service
Using authentication: e89c6fa4-d9a2-4042-b3a5-8b00ff372d92
Sending request to url: http://139.198.170.122:9000/api/projects/search?projects=devops-maven-service
Response Code: HTTP/1.1 200
Success code from [100‥399]
[Pipeline] echo
{"paging":{"pageIndex":1,"pageSize":100,"total":1},"components":[{"organization":"default-organization","id":"AXnf-zrBwuie6iwOEU8H","key":"devops-maven-service","name":"devops-maven-service","qualifier":"TRK","visibility":"public","lastAnalysisDate":"2021-06-22T09:04:10+0000"}]}

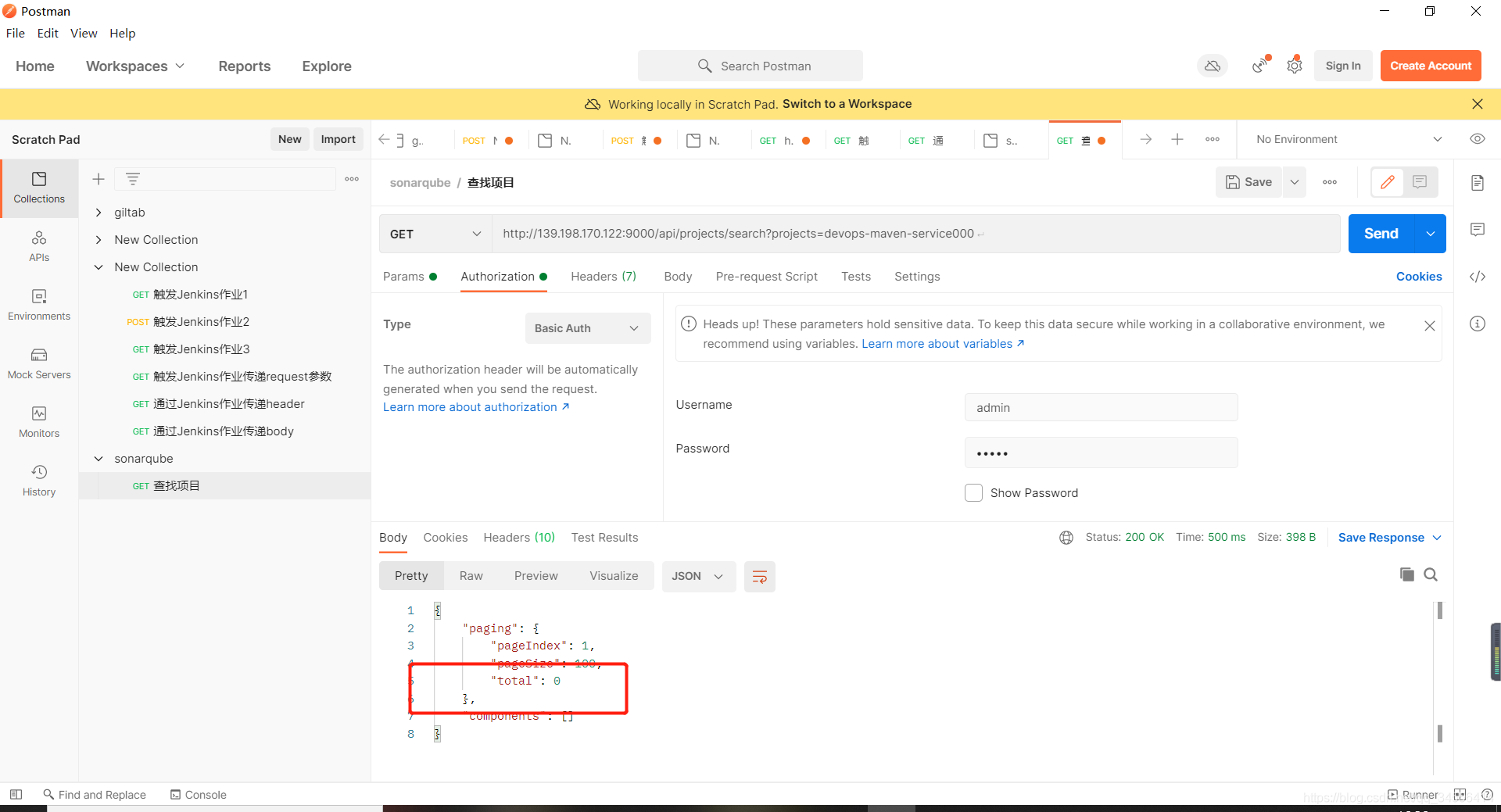

然后可以拿到返回值去使用readjson解析数据，判断项目存不存在，比如可以判断total的值是否为1来判断项目是否存在。

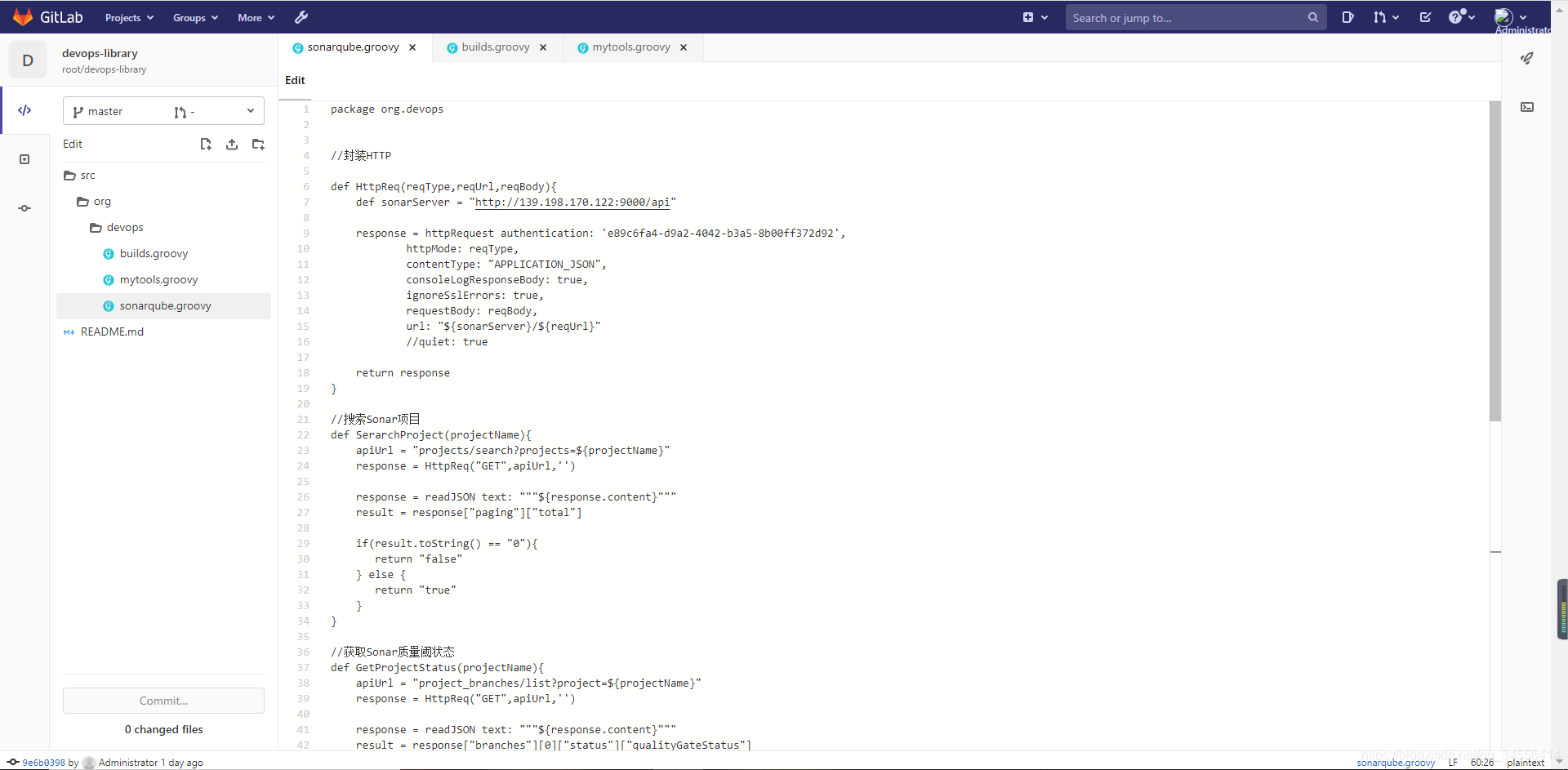

封装到共享库

现在接口这么多，这些HTTP请求大同小异，是一样的。

package org.devops


//封装HTTP

def HttpReq(reqType,reqUrl,reqBody){
    def sonarServer = "http://139.198.170.122:9000/api"

    response = httpRequest authentication: 'e89c6fa4-d9a2-4042-b3a5-8b00ff372d92',
            httpMode: reqType,
            contentType: "APPLICATION_JSON",
            consoleLogResponseBody: true,
            ignoreSslErrors: true,
            requestBody: reqBody,
            url: "${sonarServer}/${reqUrl}"
            //quiet: true

    return response
}

//搜索Sonar项目
def SerarchProject(projectName){
    apiUrl = "projects/search?projects=${projectName}"
    response = HttpReq("GET",apiUrl,'')

    response = readJSON text: """${response.content}"""
    result = response["paging"]["total"]

    if(result.toString() == "0"){
       return "false"
    } else {
       return "true"
    }
}

//获取Sonar质量阈状态
def GetProjectStatus(projectName){
    apiUrl = "project_branches/list?project=${projectName}"
    response = HttpReq("GET",apiUrl,'')

    response = readJSON text: """${response.content}"""
    result = response["branches"][0]["status"]["qualityGateStatus"]

    //println(response)

   return result
}



//创建Sonar项目
def CreateProject(projectName){
    apiUrl =  "projects/create?name=${projectName}&project=${projectName}"
    response = HttpReq("POST",apiUrl,'')
    println(response)
}

//配置项目质量规则

def ConfigQualityProfiles(projectName,lang,qpname){
    apiUrl = "qualityprofiles/add_project?language=${lang}&project=${projectName}&qualityProfile=${qpname}"
    response = HttpReq("POST",apiUrl,'')
    println(response)
}


//获取质量阈ID
def GetQualtyGateId(gateName){
    apiUrl= "qualitygates/show?name=${gateName}"
    response = HttpReq("GET",apiUrl,'')
    response = readJSON text: """${response.content}"""
    result = response["id"]

    return result
}

//配置项目质量阈

def ConfigQualityGates(projectName,gateName){
    gateId = GetQualtyGateId(gateName)
    apiUrl = "qualitygates/select?gateId=${gateId}&projectKey=${projectName}"
    response = HttpReq("POST",apiUrl,'')
    println(response)println(response)
}

要先让项目扫描之后，才可以去配置质量规则和质量阈。所以需要去新创建项目。

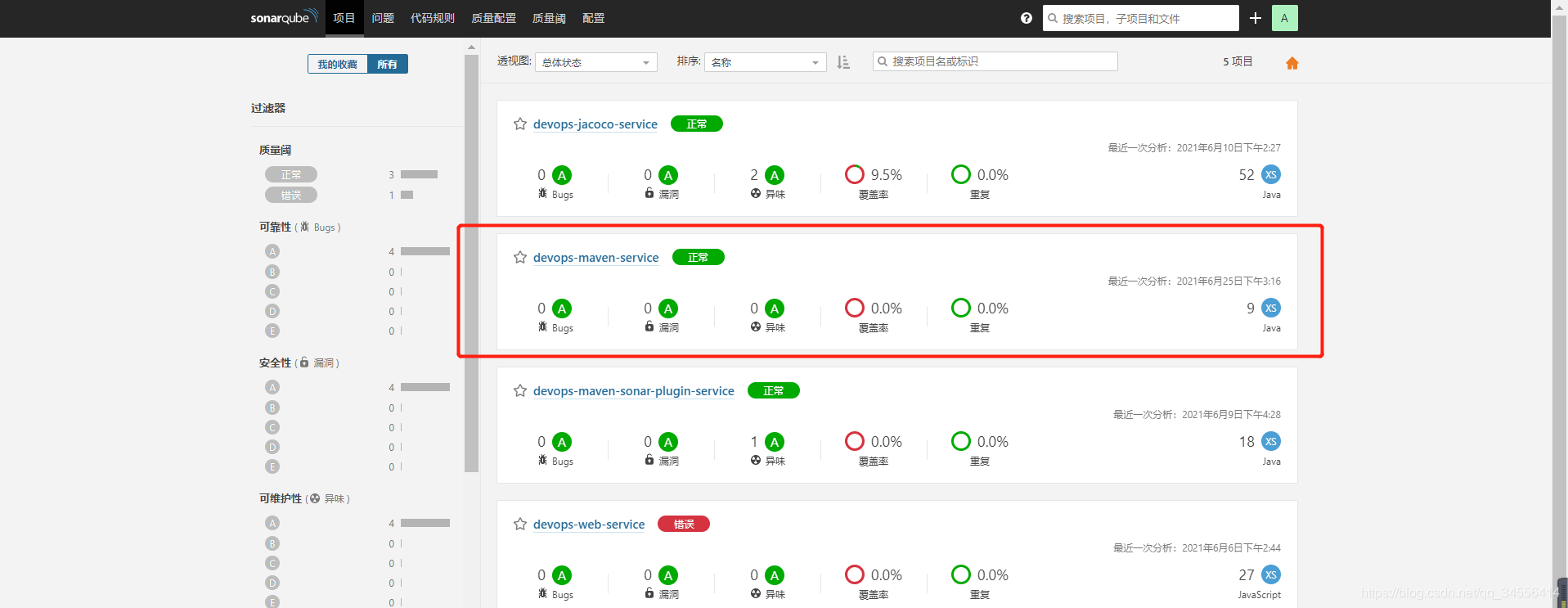

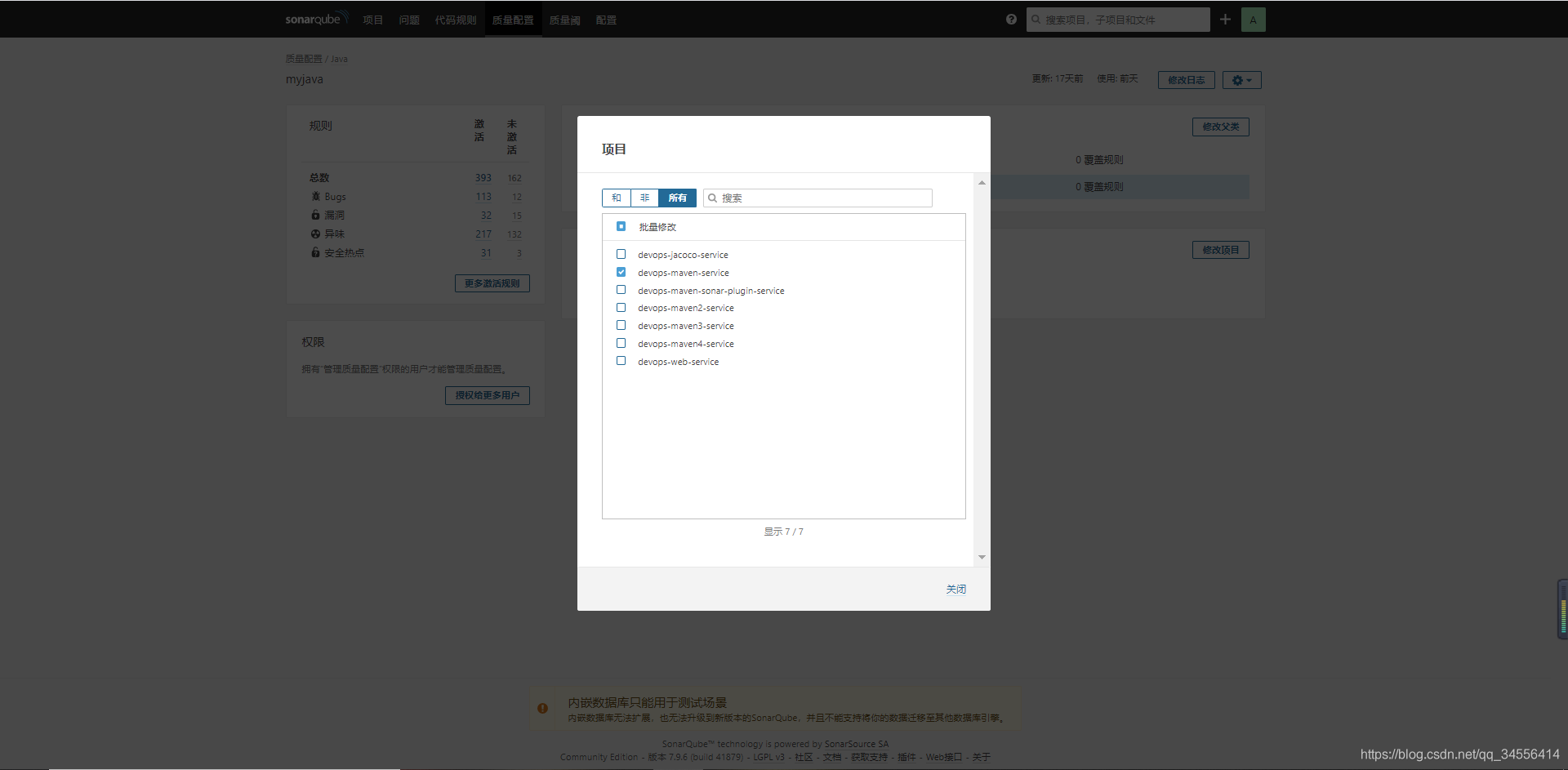

 可以看到创建的空项目

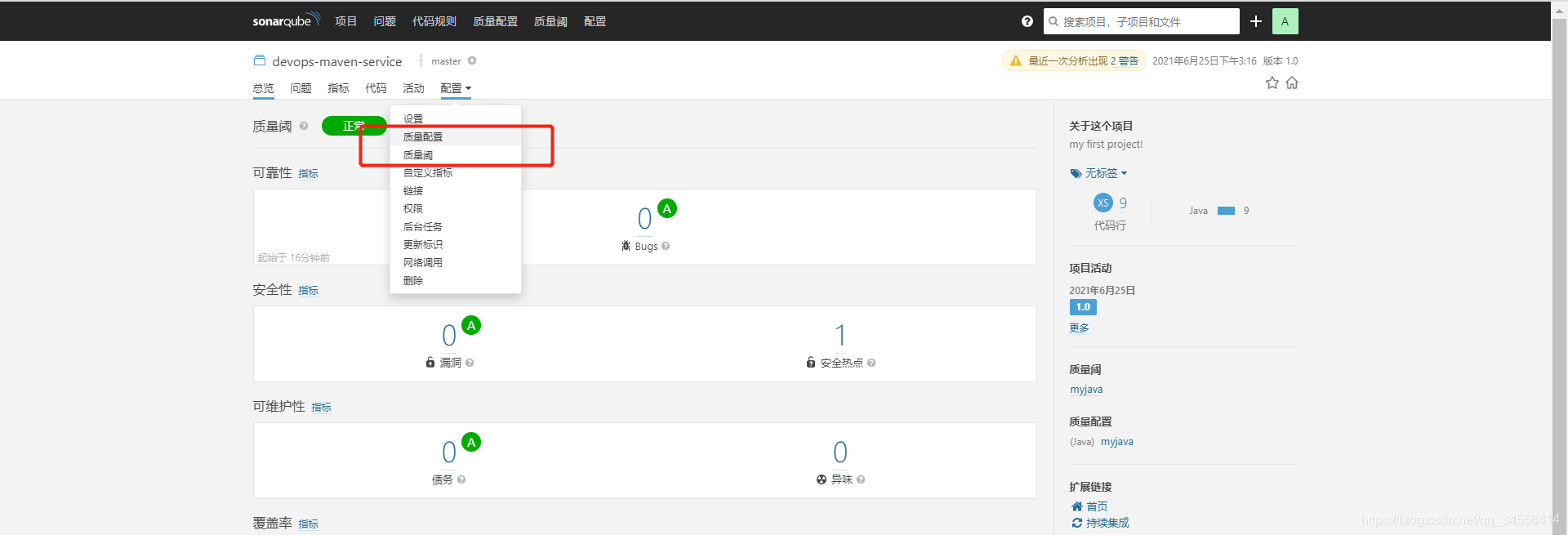

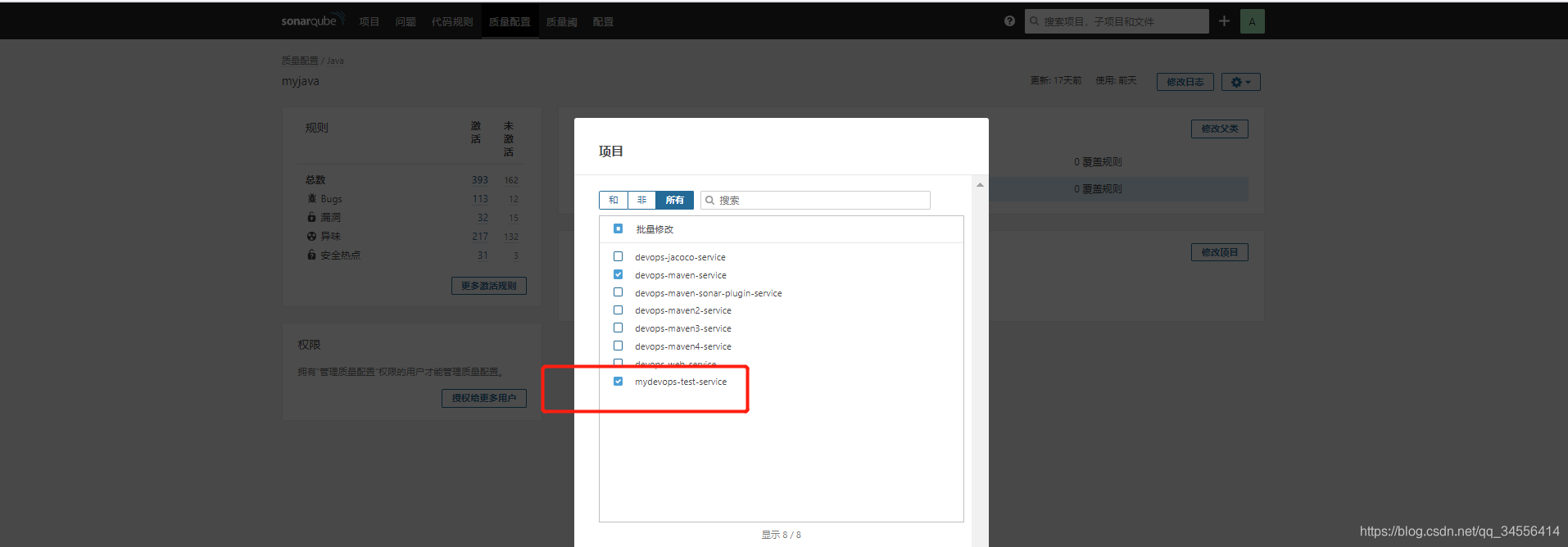

这样就可以去质量规则里面选择刚刚创建的项目了

这样项目再次扫描的时候就是使用质量规则里面的myjava了，和质量规则一样，质量阈也一样。

所以上面的代码主要是解决项目在第一次代码分析扫描的时候，未能够正确配置质量规则和质量阈值，需要这样去做。

所有的配置都需要去UI界面手动的点点点，点完之后才能进行分析，要想做到自动化就是在分析之前，将空项目创建好，然后将质量配置好，质量阈也给其配置好。

具体的Jenkinsfile的内容

// 加载名称为devopslib的共享库的master版本
@Library("devopslib@master") _


//导入共享库中的方法类
def mytools = new org.devops.mytools()
def builds  = new org.devops.builds()
def sonar = new org.devops.sonarqube()

//定义构建工具类型与路径map
def buildTools = [  "maven": "/usr/local/apache-maven-3.8.1",
          "gradle": "/usr/local/gradle-6.8.3/",
          "golang": "/usr/local/go",
          "web" : "/usr/local/node-v14.16.1-linux-x64/",
          "sonar": "/usr/local/sonar-scanner-4.6.0.2311-linux/"]

//定义UI上面的参数（用户去选择构建那个项目的那个分支的构建类型）
String branchName = "${env.branchName}"
String gitHttpURL = "${env.gitHttpURL}"
String buildType  = "${env.buildType}"
String credentialsId = "${env.credentialsId}"


// 以下是流水线阶段
pipeline {
  agent { label  "build" }
  options {
    skipDefaultCheckout true
  }

  stages {
    stage("GetCode"){
      steps{
        script{

          // 调用GetCode方法进行代码下载
          mytools.GetCode("git",branchName,gitHttpURL,credentialsId)
        }
      }

    }

    stage("Build"){
      steps {
        script {
          // 调用Build方法进行代码构建
          builds.Build(buildTools, buildType)
        }
      }
    }

    stage("SonarScan"){
      steps {
        script {
          //定义项目名称
          projectName="devops-maven-service"

         //搜索项目
          result = sonar.SerarchProject(projectName)
          println(result)

         //判断项目是否存在
          if(result == "false"){
            println("${projectName}----->项目不存在，准备创建项目${projectName}")
            sonar.CreateProject(projectName)
          }else{
            println("${projectName}----->项目已存在!")
          }

        //配置项目质量规则
        qpname = "myjava"
        sonar.ConfigQualityProfiles(projectName,"java",qpname)

        //配置质量阈
        sonar.ConfigQualityGates(projectName,qpname)

        //扫描
        sh """
        ${buildTools["sonar"]}/bin/sonar-scanner -Dsonar.host.url=http://139.198.170.122:9000 \
        -Dsonar.projectKey="${projectName}" \
        -Dsonar.projectName="${projectName}" \
        -Dsonar.projectVersion=1.0 \
        -Dsonar.login=admin \
        -Dsonar.password=admin \
        -Dsonar.ws.timeout=30 \
        -Dsonar.projectDescription="my first project!" \
        -Dsonar.links.homepage=http://139.198.170.122:81/root/devops-maven-service \
        -Dsonar.links.ci=http://139.198.170.122:8080/job/demo-maven-service/ \
        -Dsonar.sources=src/main \
        -Dsonar.sourceEncoding=UTF-8 \
        -Dsonar.java.binaries=target/classes \
        -Dsonar.java.test.binaries=target/test-classes \
        -Dsonar.java.surefire.report=target/surefire-reports
        """
        sleep 10
        //获取扫描结果
        result = sonar.GetProjectStatus(projectName)
        println(result)
        if (result.toString() == "ERROR"){
           error "代码质量阈失败，请及时修复"
        } else {
           println(result)
        }

        }
      }
    }

  }

  post {
    always {
      script{
        echo "always......"

      }
    }

    success {
      script {
        echo "success....."
      }
    }
  }

}

 接下来的效果就是在扫描之前，项目给你配置好，质量阈也会给你配置好

HttpMethod: GET
URL: http://139.198.170.122:9000/api/projects/search?projects=devops-maven-service
Content-Type: application/json
Using authentication: e89c6fa4-d9a2-4042-b3a5-8b00ff372d92
Sending request to url: http://139.198.170.122:9000/api/projects/search?projects=devops-maven-service
Response Code: HTTP/1.1 200
Response:
{"paging":{"pageIndex":1,"pageSize":100,"total":0},"components":[]}
Success code from [100‥399]
[Pipeline] readJSON
[Pipeline] echo
false
[Pipeline] echo
devops-maven-service----->项目不存在，准备创建项目devops-maven-service
[Pipeline] httpRequest
HttpMethod: POST
URL: http://139.198.170.122:9000/api/projects/create?name=devops-maven-service&project=devops-maven-service
Content-Type: application/json
Using authentication: e89c6fa4-d9a2-4042-b3a5-8b00ff372d92
Sending request to url: http://139.198.170.122:9000/api/projects/create?name=devops-maven-service&project=devops-maven-service
Response Code: HTTP/1.1 200
Response:
{"project":{"key":"devops-maven-service","name":"devops-maven-service","qualifier":"TRK","visibility":"public"}}
Success code from [100‥399]
[Pipeline] echo
Status: 200
[Pipeline] httpRequest
HttpMethod: POST
URL: http://139.198.170.122:9000/api/qualityprofiles/add_project?language=java&project=devops-maven-service&qualityProfile=myjava
Content-Type: application/json
Using authentication: e89c6fa4-d9a2-4042-b3a5-8b00ff372d92
Sending request to url: http://139.198.170.122:9000/api/qualityprofiles/add_project?language=java&project=devops-maven-service&qualityProfile=myjava
Response Code: HTTP/1.1 204
Response:
null
Success code from [100‥399]
[Pipeline] echo
Status: 204
[Pipeline] httpRequest
HttpMethod: GET
URL: http://139.198.170.122:9000/api/qualitygates/show?name=myjava
Content-Type: application/json
Using authentication: e89c6fa4-d9a2-4042-b3a5-8b00ff372d92
Sending request to url: http://139.198.170.122:9000/api/qualitygates/show?name=myjava
Response Code: HTTP/1.1 200
Response:
{"id":4,"name":"myjava","conditions":[{"id":10,"metric":"branch_coverage","op":"LT","error":"60"}],"isBuiltIn":false,"actions":{"rename":true,"setAsDefault":true,"copy":true,"associateProjects":true,"delete":true,"manageConditions":true}}
Success code from [100‥399]
[Pipeline] readJSON
[Pipeline] httpRequest
HttpMethod: POST
URL: http://139.198.170.122:9000/api/qualitygates/select?gateId=4&projectKey=devops-maven-service
Content-Type: application/json
Using authentication: e89c6fa4-d9a2-4042-b3a5-8b00ff372d92
Sending request to url: http://139.198.170.122:9000/api/qualitygates/select?gateId=4&projectKey=devops-maven-service
Response Code: HTTP/1.1 204
Response:
null
Success code from [100‥399]
[Pipeline] echo
Status: 204
[Pipeline] sh
+ /usr/local/sonar-scanner-4.6.0.2311-linux//bin/sonar-scanner -Dsonar.host.url=http://139.198.170.122:9000 -Dsonar.projectKey=devops-maven-service -Dsonar.projectName=devops-maven-service -Dsonar.projectVersion=1.0 -Dsonar.login=admin -Dsonar.password=admin -Dsonar.ws.timeout=30 '-Dsonar.projectDescription=my first project!' -Dsonar.links.homepage=http://139.198.170.122:81/root/devops-maven-service -Dsonar.links.ci=http://139.198.170.122:8080/job/demo-maven-service/ -Dsonar.sources=src/main -Dsonar.sourceEncoding=UTF-8 -Dsonar.java.binaries=target/classes -Dsonar.java.test.binaries=target/test-classes -Dsonar.java.surefire.report=target/surefire-reports
INFO: Scanner configuration file: /usr/local/sonar-scanner-4.6.0.2311-linux/conf/sonar-scanner.properties
INFO: Project root configuration file: NONE
INFO: SonarScanner 4.6.0.2311
INFO: Java 1.8.0_282 AdoptOpenJDK (64-bit)


[Pipeline] sleep
Sleeping for 10 sec
[Pipeline] httpRequest
HttpMethod: GET
URL: http://139.198.170.122:9000/api/project_branches/list?project=devops-maven-service
Content-Type: application/json
Using authentication: e89c6fa4-d9a2-4042-b3a5-8b00ff372d92
Sending request to url: http://139.198.170.122:9000/api/project_branches/list?project=devops-maven-service
Response Code: HTTP/1.1 200
Response:
{"branches":[{"name":"master","isMain":true,"type":"LONG","status":{"qualityGateStatus":"OK"},"analysisDate":"2021-06-26T03:05:59+0000"}]}
Success code from [100‥399]
[Pipeline] readJSON
[Pipeline] echo
OK
[Pipeline] echo
OK
[Pipeline] }

 上面信息可以看到将质量规则和质量阈都改成了myjava





相对于手动在web上面创建的操作，全部以调接口的方式在Jenkins里面完成了，要不然每次在新项目上都需要先创建新项目，然后授权。
